    Heat Shrinkable Cable Repair Sleeve

    Moodel:HSRS-N

    Heat Shrinkable Cable Repair Sleeve (HSRS-N) is made of a cross-linked, heat-shrinkable, thermally stabilized polyolefin, which is coated with a hot-melt adhesive .

    Back to list >>

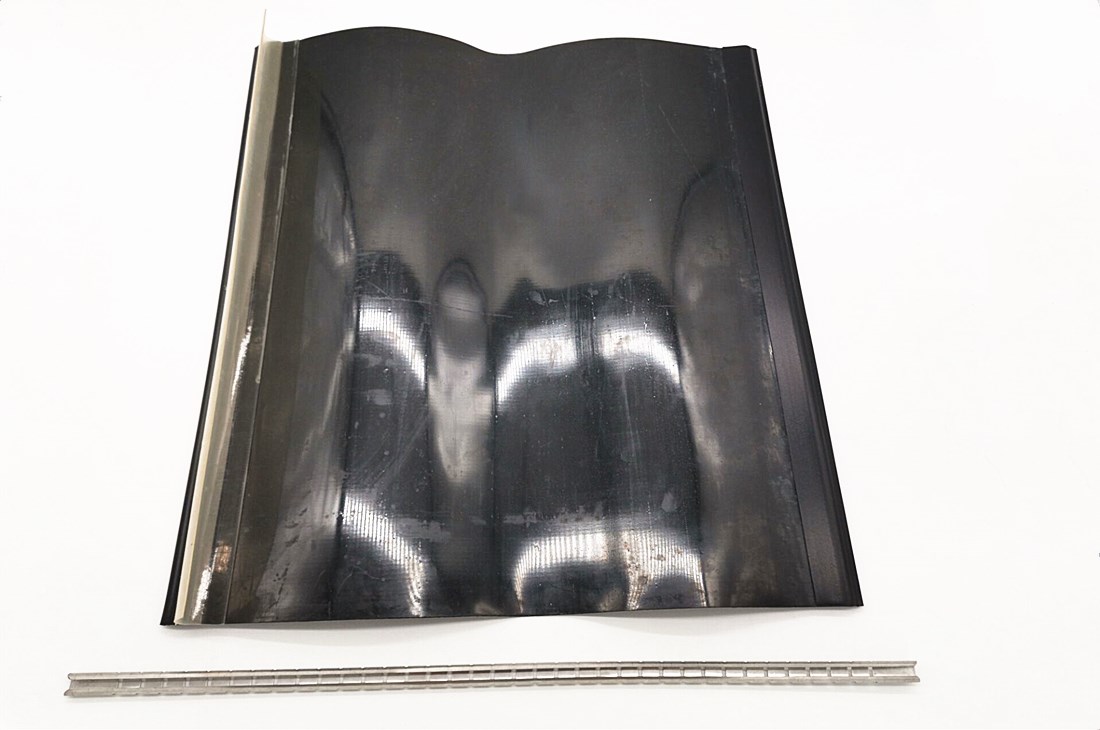

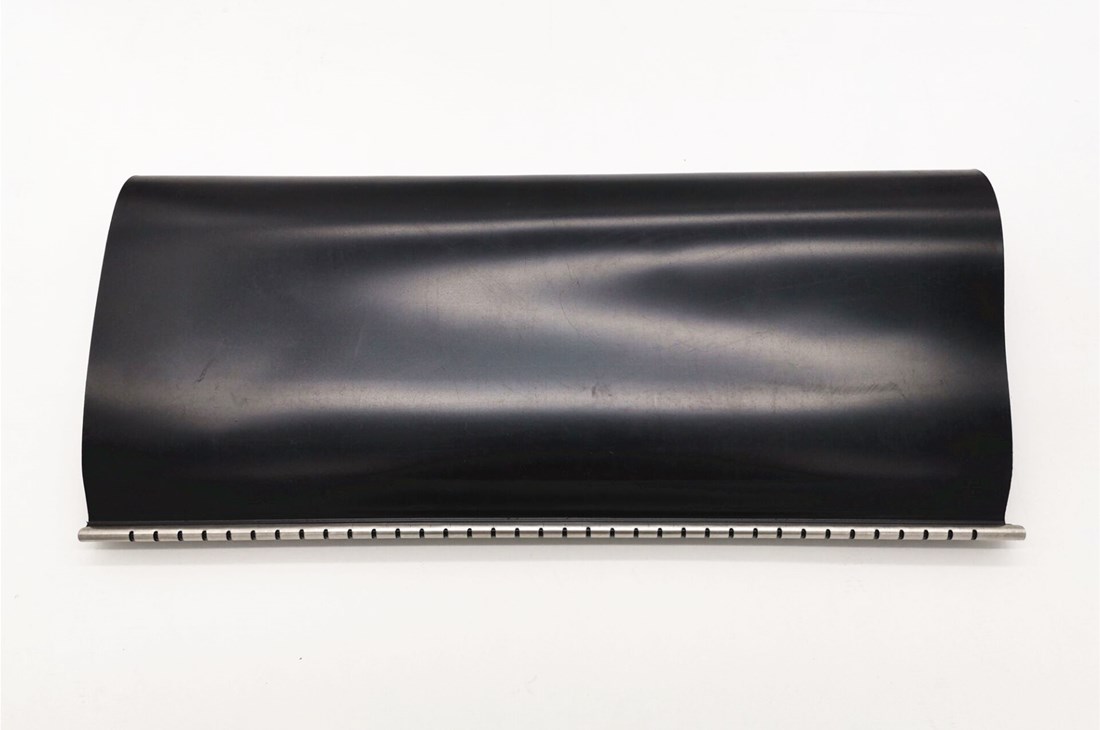

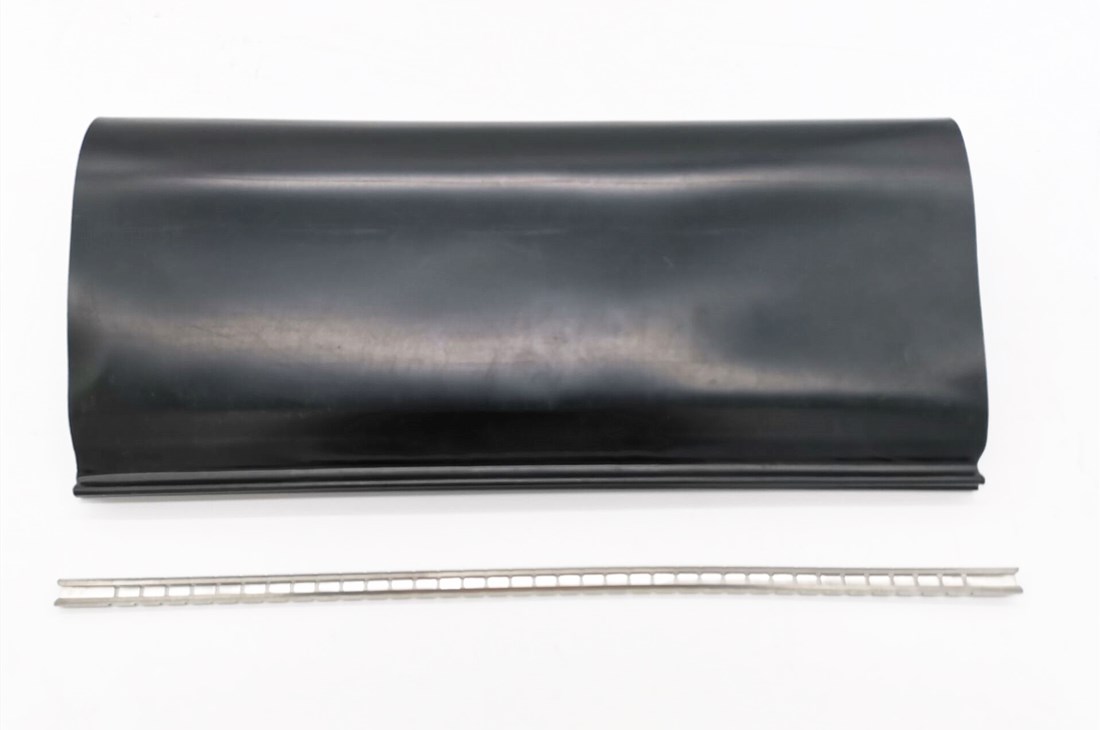

    Heat Shrinkable Cable Repair Sleeve (HSRS-N) is made of a cross-linked, heat-shrinkable, thermally stabilized polyolefin, which is coated with a hot-melt adhesive, it will bond at the temperatures attained during the shrinking operation. The HSRS-N has an aluminum canister providing mechanical protection of joint. Flexible crowns at the ends provide a smooth transition from the joint to the cable.




    Property

    Test Method

    Standard Value

    Tensile strength

    ASTM-D-638

    ≥13MPa

    Elongation at break

    ASTM -D- 638

    ≥300%

    Tensile strength after aging

    ASTM-D-2671/120,168hrs

    ≥11MPa

    Elongation at break after aging

    ASTM-D-2671/120,168hrs

    ≥210%

    Volume resistance

    ASTM-D-2303

    ≥1×1014Ω·cm

    Dielectric strength

    IEC 243

    ≥20kV/mm

    Longitudinal shrinkage

    -

    ≤ 10%

    Eccentricity

    ASTM-D-267

    ≤30%

    Water absorption

    ISO 62

    ≤0.1%


    Item

    Widthmm)

    Wall thickness   mm)

    Before shrink

    After shrink

    Before  shrink

    After shrink

    Ф 30

    120

    37

    1.1±0.2

    3.8±0.2

    Ф 40

    130

    37

    1.0±0.2

    3.8±0.2

    Ф 50

    160

    52

    1.1±0.2

    3.8±0.2

    Ф 65

    205

    74

    1.1±0.2

    3.8±0.2

    Ф   85

    270

    85

    1.0±0.2

    3.8±0.2

    Ф 100

    320

    85

    1.0±0.2

    3.8±0.2

    Ф   120

    380

    125

    1.3±0.2

    3.8±0.2

    Ф 150

    475

    155

    1.3±0.2

    3.8±0.2

    Ф   160

    505

    155

    1.2±0.2

    3.8±0.2

    Ф 195

    590

    218

    1.0±0.2

    2.3±0.2

    Ф   240

    735

    280

    1.0±0.2

    2.3±0.2

    Ф 290

    900

    365

    1.0±0.2

    2.3±0.2

    *Alternative for Raychem CRSM,3M HDCW, CANUSA CRDW
