    Heat Shrink Tubing for Fiber Optic Closures

    Moodel:HSTFC

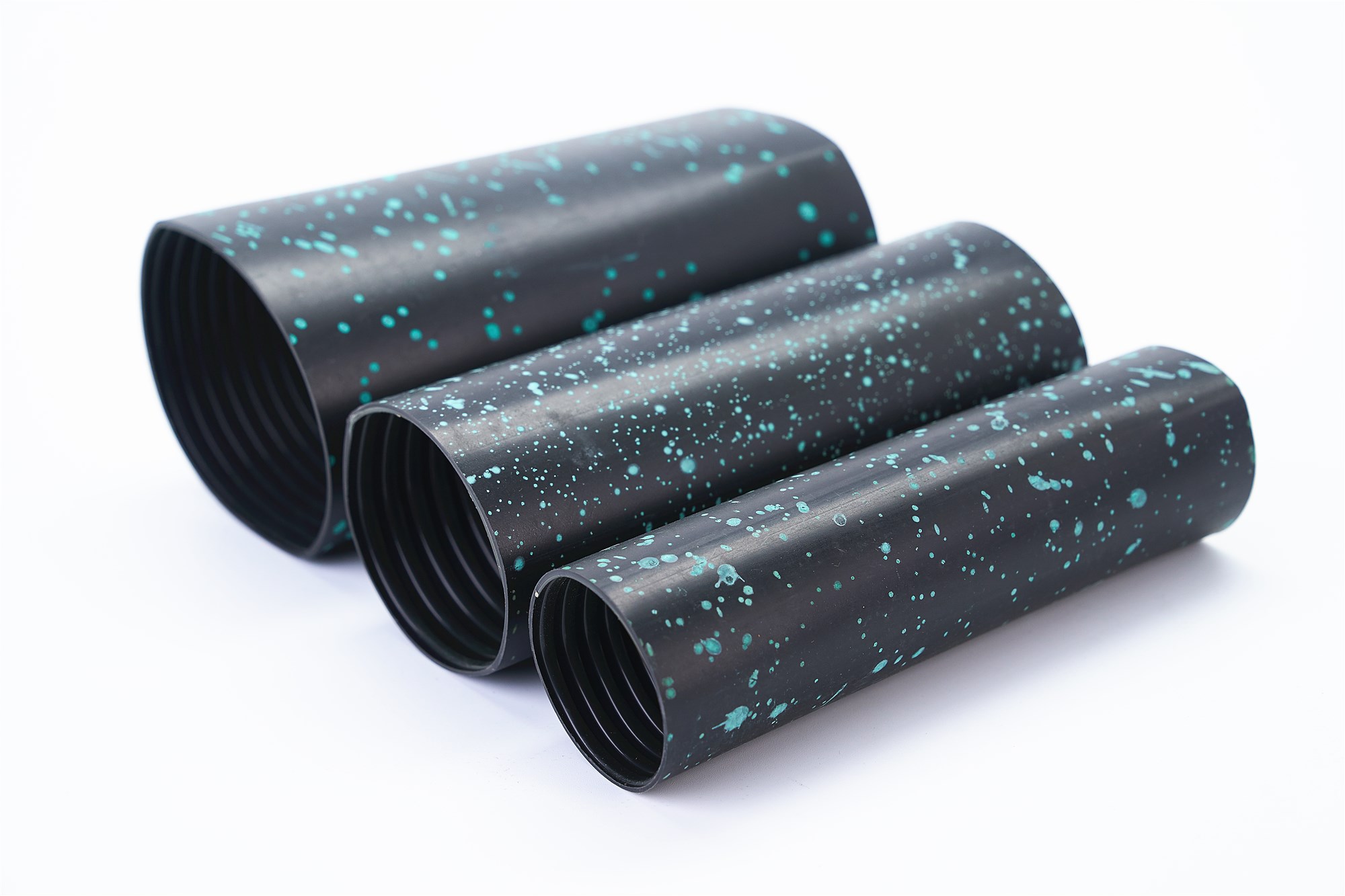

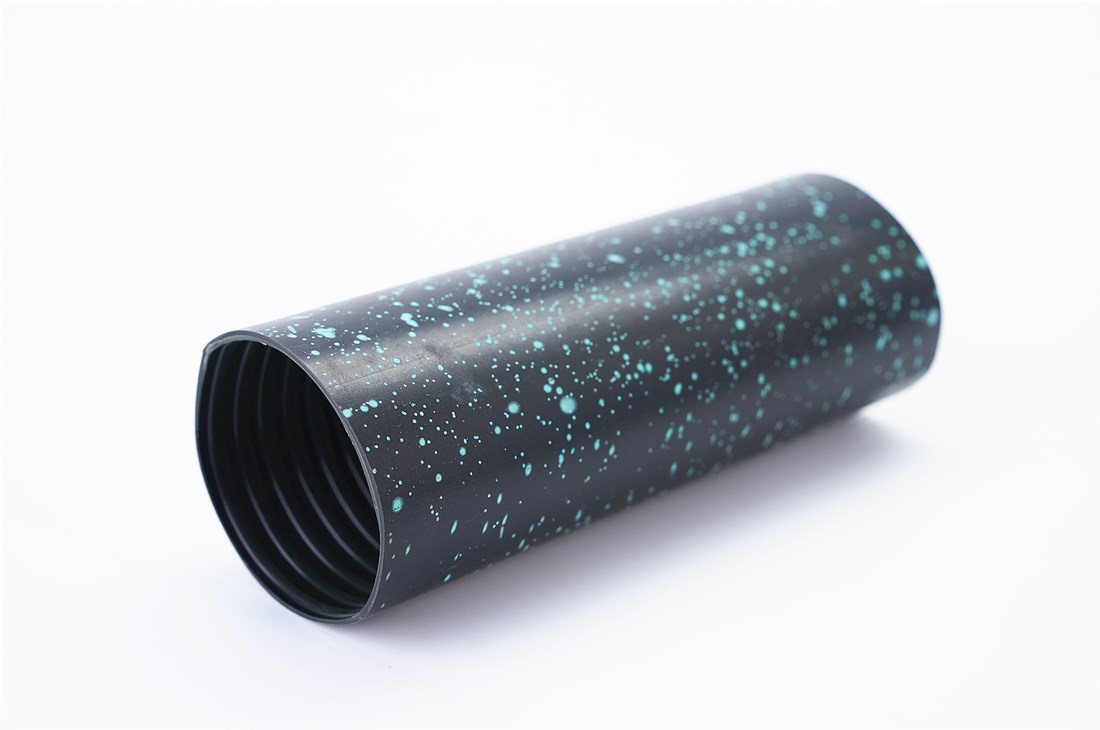

    Heat Shrink Tubing for Fiber Optic Closures (terminal box) is with a layer of spiral coated hot melt adhesive in the internal surface. Out layer provide reliable protection.

    Back to list >>

    Heat Shrink Tubing for Fiber Optic Closures (terminal box) is with a layer of spiral coated hot melt adhesive in the internal surface. Out layer provide reliable protection. High quality hot melt adhesive provide excellent watertight and prevent leaking from terminal box.


    Features


    >Resistant to UV-radiation

    >High electrical insulation

    >Superior mechanical property

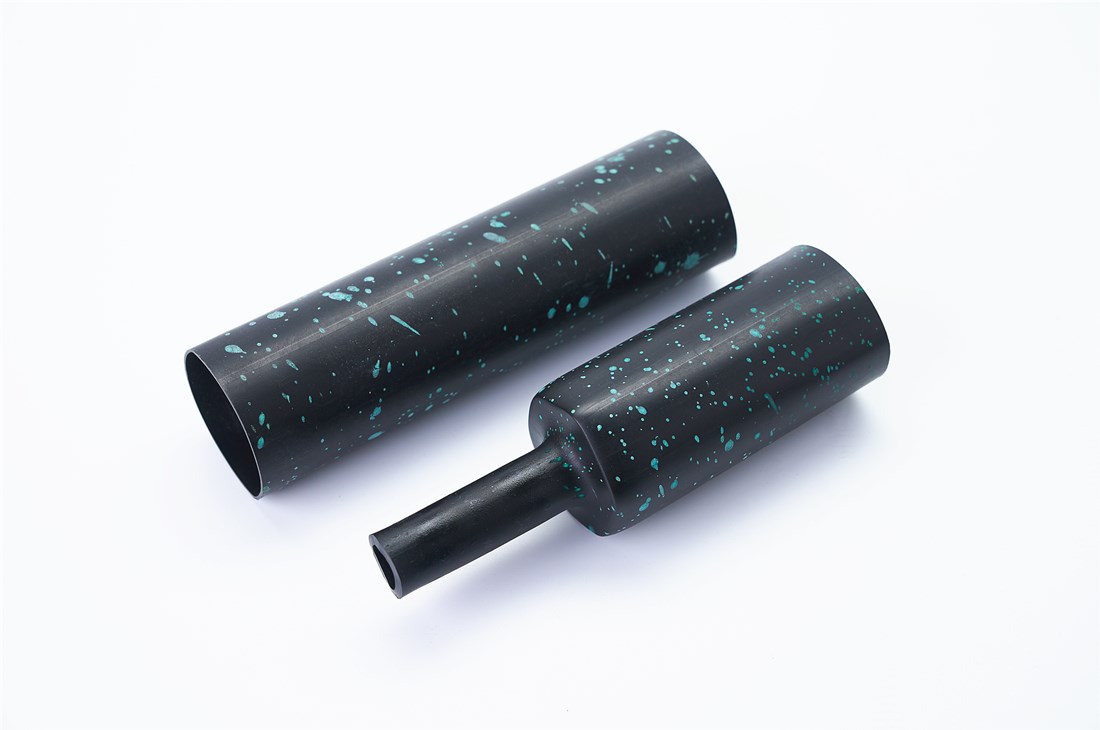

    > Temperature sensitive paint for easy operation

    > One inside end without adhesive for fixing cable position

    > Chemical Resistant to Liquid of 70% Isooctane and 30% Toluene for 168 hours (70/30,Isooctane/Toluene)


    Operating temperature range:


    >Operating temperature: -55˚C~110˚C

    >Minimum shrink temperature: 80˚C

    >Minimum fully recovery temperature: 120˚C


    PropertyTest MethodTypical Data
    Operating temperatureIEC 216-55℃ to +110℃
    Tensile strengthASTM D 2671≥14Mpa
    Tensile strength after aging (150℃/168hrs.)ASTM D 2671≥12MPa
    Elongation at breakASTM D 2671≥400%
    Elongation at break after aging (150℃/168hrs.)ASTM D 2671≥300%
    DensityASTM D 7921.05g/cm3
    Longitudinal shrinkageUL 2240 to -10%
    Dielectric strengthIEC 243≥20kV/mm
    Volume resistanceIEC 93>1014Ω.cm
    EccentricityASTM D 2671<30%
    Copper stabilityASTM D 2671Pass
    Resistance to stress cracking (50℃)ASTM D 1693No cracking
    Water absorption (23℃/14days)ISO 62<0.15%


    Normal size

    (mm)

    As supplied(mm)After recovered (mm)Tube shapeStandard

    length

    Inside diameter(Min.)InsideDiameter

    (Max.)

    Wall thickness(Min.)
    HSTFC-33/8

    33

    8

    2.5

    O

    150,200,250mm
    HSTFC-40/12

    40

    12

    2.5

    O

    150,200,250mm
    HSTFC-44/14

    44

    14

    2.5

    O

    150,200,250mm
    HSTFC-55/16

    55

    16

    3.0

    O

    150,200,250mm
    HSTFC-75/22

    75

    22

    3.0

    O

    150,200,250mm
    HSTFC-95/25

    95

    25

    3.0

    O

    150,200,250mm
    HSTFC-115/34

    115

    34

    3.0

    O

    150,200,250mm
    HSTFC-140/42

    140

    42

    3.0

    O

    150,200,250mm
