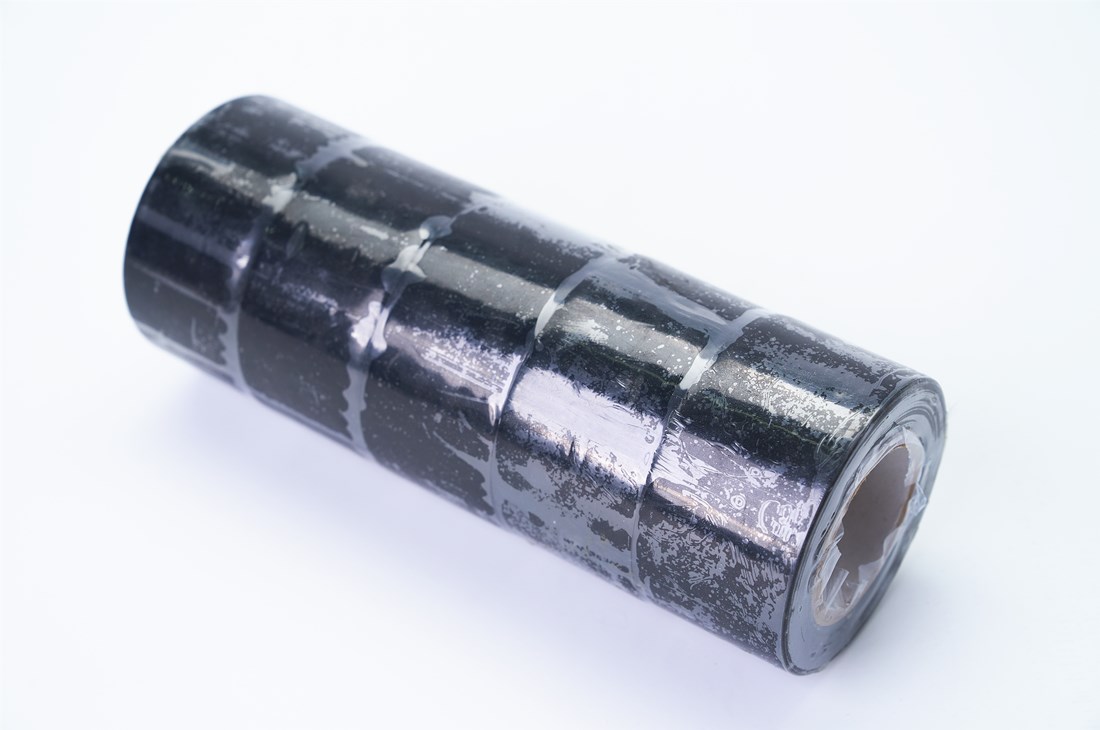

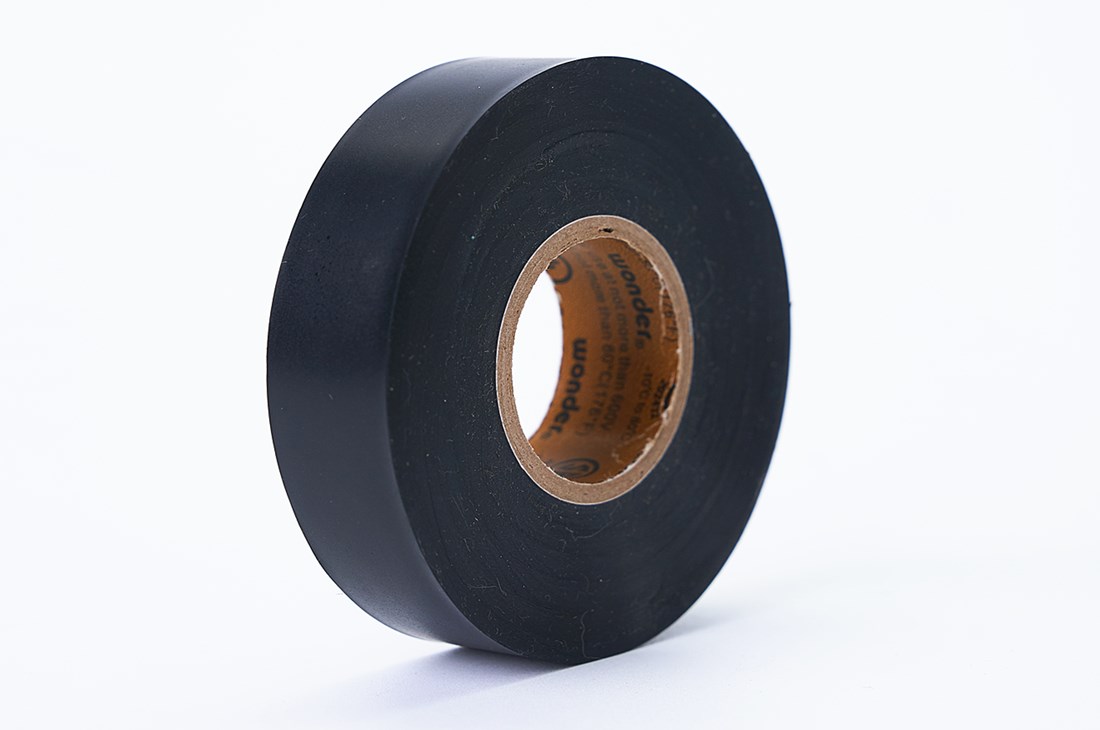

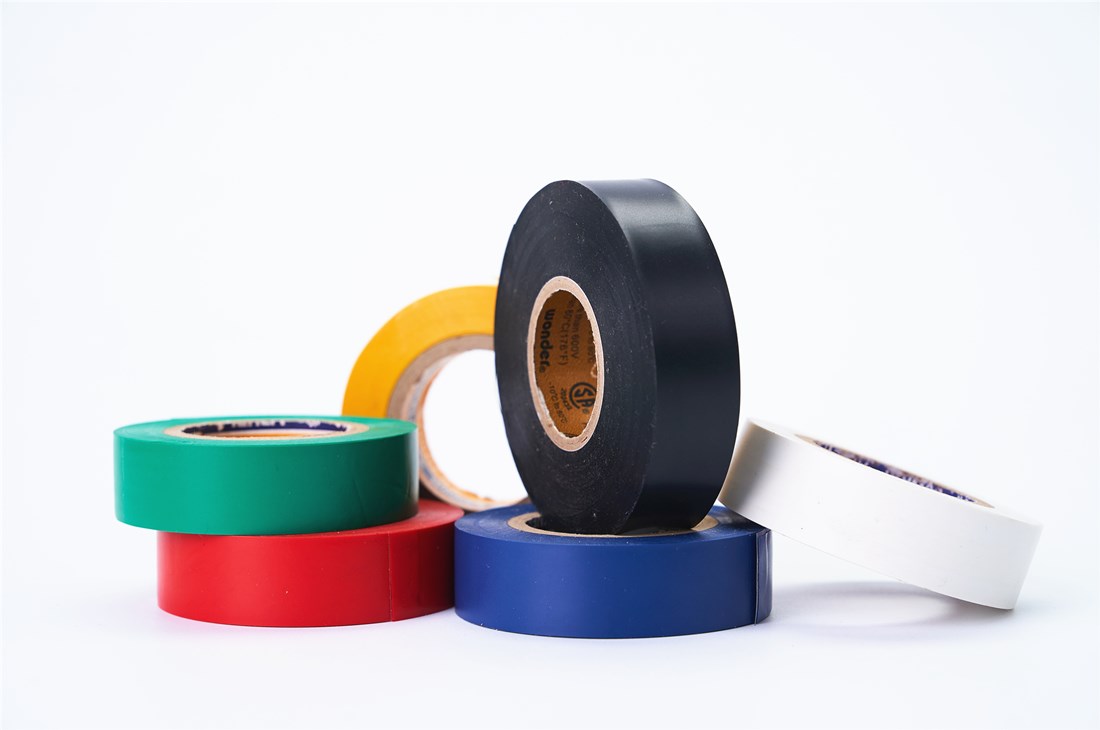

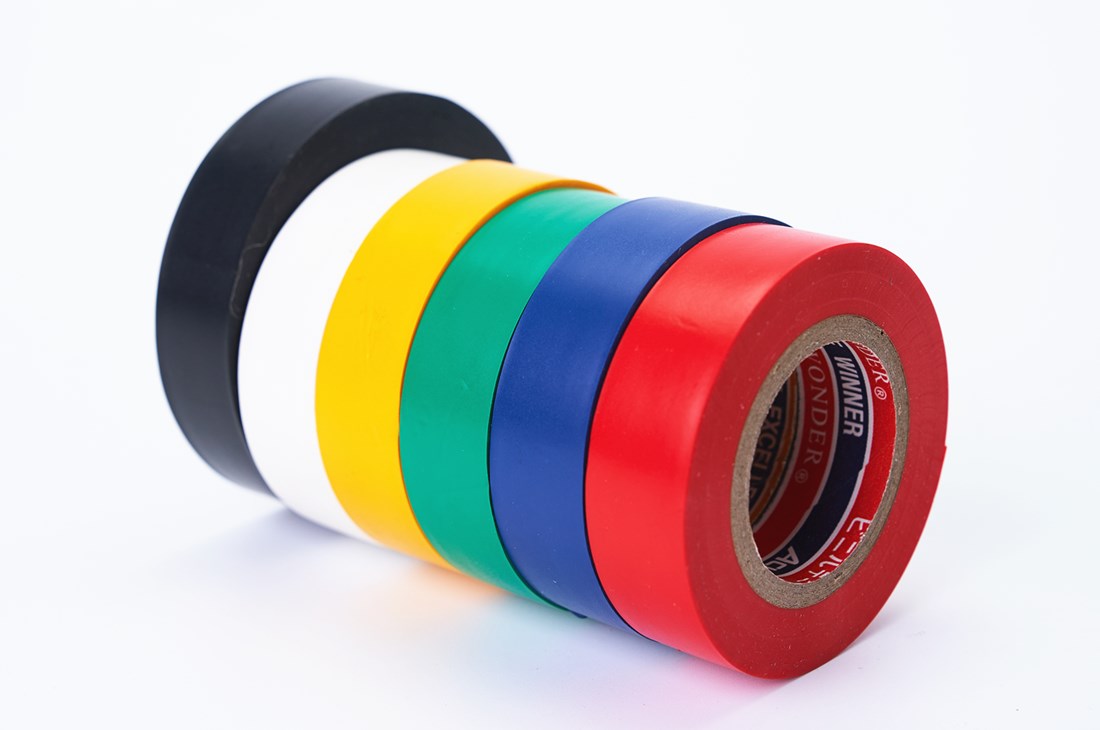

    Vinyl Electrical Tape

    Moodel:VYPT

    Vinyl Electrical Tape is an Alternative for 3M Scotch 33+ Tape, It is all Weather conformability, Flame-retardant, High Insulating, and RoHS Compliant. It used for general wrapping, terminating, splicing and insulating in any weather application.

    Back to list >>

    Vinyl Electrical Tape is an Alternative for 3M Scotch 33+ Tape, It is all Weather conformability, Flame-retardant, High

    Insulating, and RoHS Compliant. Sizes are 0.19mm x 19mm x 20m/0.19mm x 25mm x 20m/0.19mm x 38mm x 20m.

    It used for general wrapping, terminating, splicing and insulating in any weather application.


    >All-weather conformability and protection.

    >Operating Temperature Range: -18℃ ~ 38℃

    >Total insulation compatibility.

    >Flame retardant.

    >Excellent abrasion and puncture resistance.

    >High tensile and mechanical strength.

    >Good elongation for conformability

    >Non-corrosive.

    >High dielectric strength.

    >Great resistance to weathering, salt water, alkalies and acid.


    Applications


    You can use it inside or outside plant for every general wrapping, terminating, splicing and insulating in any weather

    application.


    Physical properties
    PropertyTypical valueTest method
    BackingPolyvinyl chloride
    ColorBlack
    Thickness (mm)0.22ASTM D-100
    Adhesion to backing (23℃, KN/m)0.18ASTM D-100
    Tensile strength (23℃, MPa)3.5ASTM D-100
    Elongation (23℃, % at break)200ASTM D-100
    Flammability1 sec.UL510
    Temperature rating(℃)80UL510
    Electrical properties

    PropertyTypical valueTest method
    Dielectric breakdown (KV/mm)8ASTM D-100
    Insulation resistance1×1012ASTM D-100


    Vinyl plastic tape is available in the following roll sizes:


    0.19mmx 19mm×20m

    0.19mmx 25mm×20m

    0.19mmx 38mm×20m


    *Alternative products for 3M Scotch 33+ / 88T Tape
