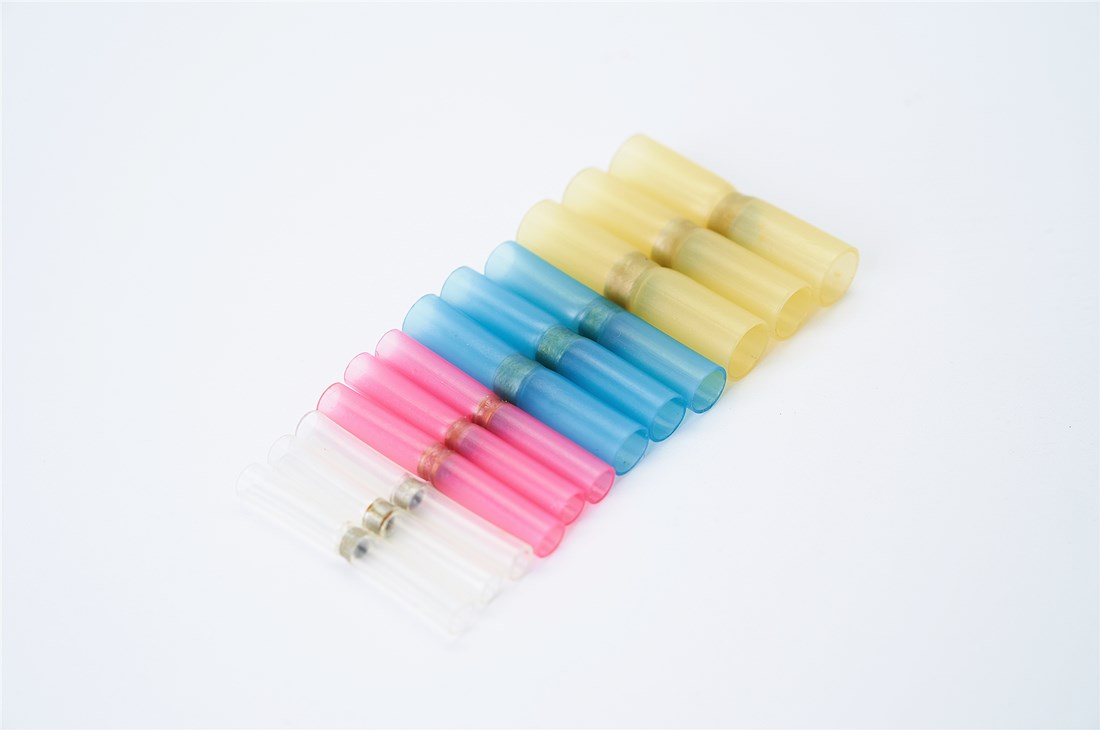

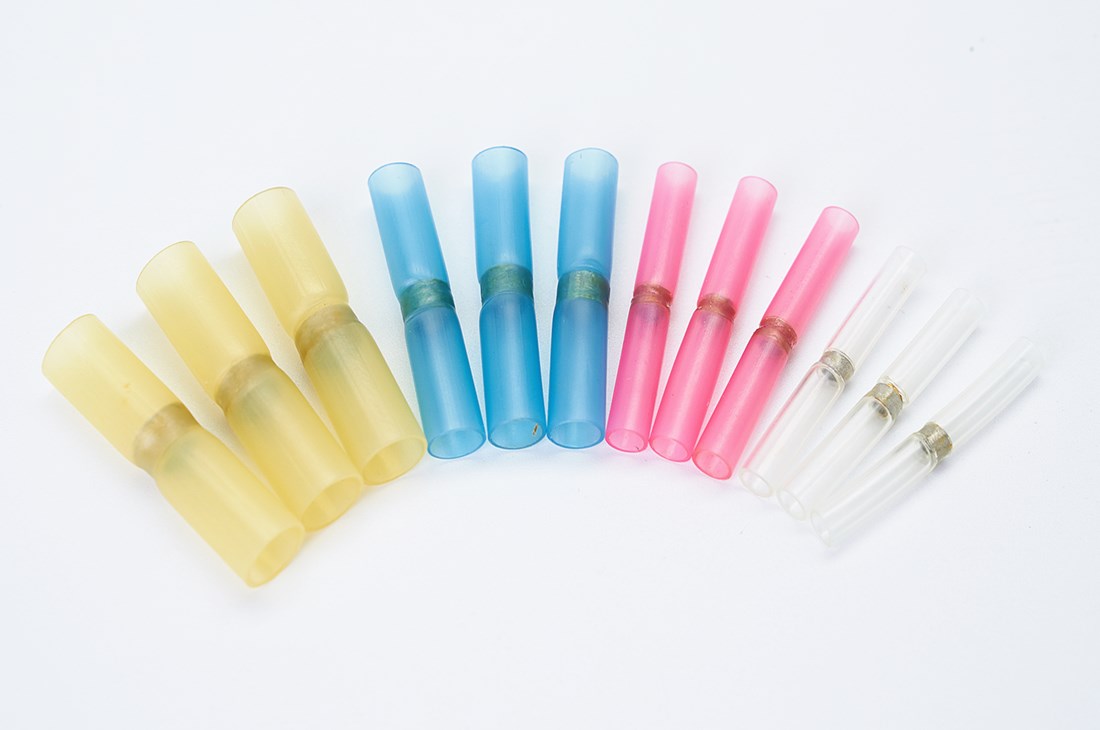

    DuraSeal Heat Shrink Solder Splices

    Moodel:DHSSS

    DuraSeal Heat Shrink Solder Splices is One piece design,it consists of transparent heat shrinkable sleeve and fluxed solder. Provides insulation easily and lower the installed cost.

    Back to list >>

    DuraSeal Heat Shrink Solder Splices is One piece design,it consists of transparent heat shrinkable sleeve and fluxed solder.

    Provides insulation easily and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube,it’s very

    convenience to use the exact wire dimension.


    Features:


    >Shrinking ratio 2:1


    >Waterproof for wiring splices


    >Transparent sleeve provides precise inspection


    > High Tensile Strength


    >Easy control soldering process


    Operating Termperature Range:


    >Operating Temperature : -55˚C~125˚C


    >Fully Recovery Temperature : 130˚C


    >Temperature of fully solder melt : 150˚C


    ItemValue
    Temperature Application Range-55˚C~125˚C (Butt Joint)
    Shrinking Temperature>115℃
    Dielectric strength1KV
    Protection TypeIP 67


    ModelColor

    Before Shrinking(mm)

    After Shrinking(mm)

    Solder Ring

    Length (L)

    ID (a)

    Thick (b)

    ID

    Thick

    ID (c)

    Thickness (d)

    Length (e)

    DHSSS-1

    Clear

    2.0±0.1

    0.30±0.05

    1.1±0.1

    0.50±0.05

    1.8±0.1

    0.3±0.05

    2.0±0.1

    40±0.5

    DHSSS -2

    Red

    3.2±0.2

    0.38±0.05

    1.5±0.1

    0.55±0.05

    2.9±0.1

    0.45±0.05

    2.5±0.1

    40±0.5

    DHSSS -3

    Blue

    5.0±0.2

    0.40±0.05

    2.6±0.1

    0.78±0.05

    4.6±0.1

    0.48±0.05

    2.5±0.1

    40±0.5

    DHSSS -4

    Yellow

    6.5±0.2

    0.40±0.05

    3.0±0.1

    0.80±0.05

    6.2±0.1

    0.5±0.05

    3.5±0.1

    40±0.5
