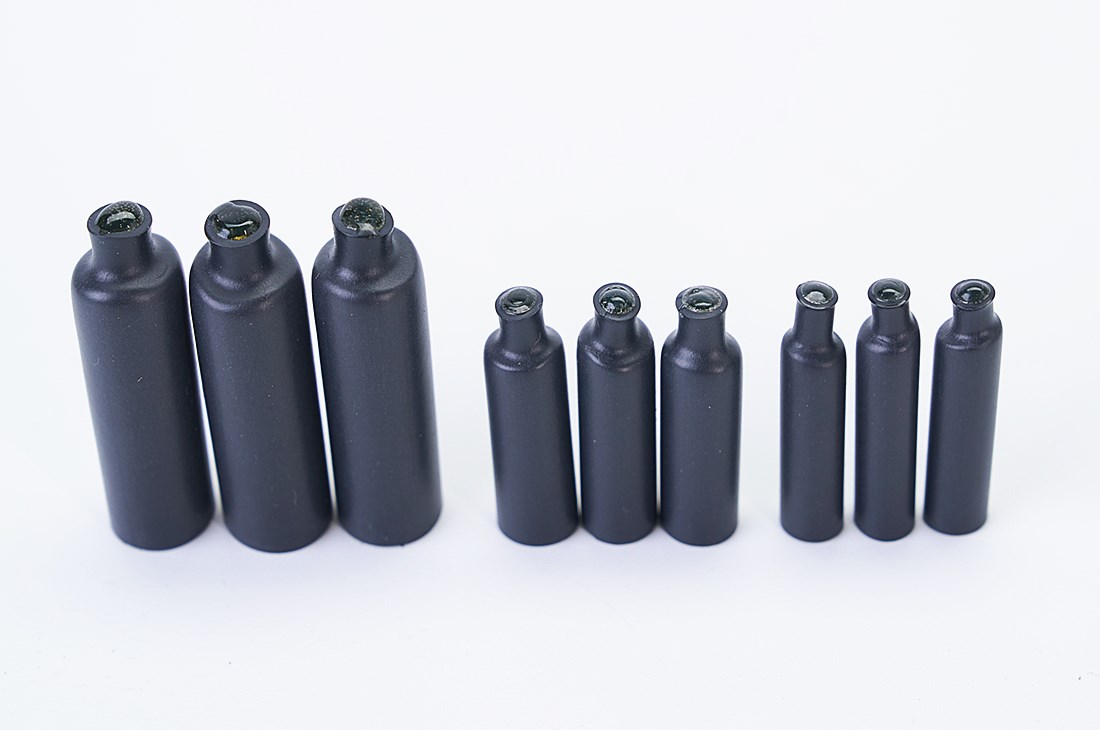

    Adhesive lined Mini Heat Shrink Cap

    Moodel:HSMC

    Adhesive lined Mini Heat Shrink Cap (HSEC) is specially designed to provide mechanical and environmental of stub splice in electrical harness. Clear caps allow see-through inspection. Black caps are flame-retardant.

    Back to list >>

    Adhesive lined Mini Heat Shrink Cap (HSEC) is specially designed to provide mechanical and environmental of stub splice in electrical harness. Clear caps allow see-through inspection. Black caps are flame-retardant.


    Features of Heat Shrink Cap


    > 4:1 shrink ratio allows a few sizes to cover a wide range of splice


    > Mechanically tough jacket provides strain relief and abrasion protection.

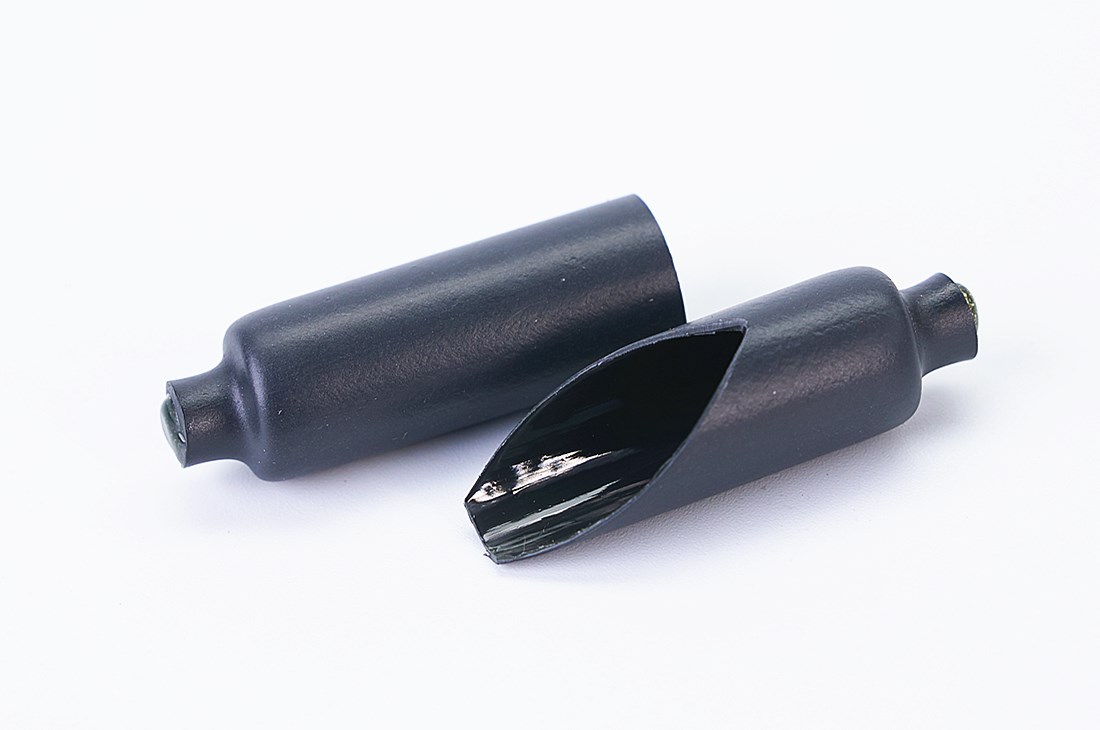

    > Thick adhesive liner forms an effective barrier against fluids and moisture and performs well at an extended temperature range.


    > Colors: Black or Clear


    > Operating temperature:-40 ℃ to 105 ℃


    > Minimum shrink temperature: 100 ℃


    > Minimum fully recovery temperature: 135 ℃


    ProPertyTest MethodTypical Data
    Tensile strengthASTM D 267110.4Mpa (min.)
    Tensile strength after aging158℃、168 hrsASTM D 2671Remains 70%
    Elongation at breakASTM D 2671200% (min.)
    Elongation at break after aging  158℃、168 hrsASTM D 2671100% (min.)
    Longitudinal shrinkageUL 2240 to – 10%
    Heat shock250℃、4hrsNo cracking、no dropping
    Cold bend -40℃、1hrASTM D 2671No cracking
    Voltage withstandAC 2500V、60 secondsASTM D 2671No breakdown
    Volume resistanceASTM D 8761014Ω.cm (min.)
    flammabilitySAE-AMS-DTL-23053/5Self extinguish in 30 sec.
    Copper corrosion158℃、168 hrsUL 224pass
    Water absorptionASTM D 570< 0.5%


    HSMC-E  mm(inch)

    PartNumberStandardLengthas supplied(mm)Inner Diameter as supplied (Min)Inner Diameter Recovered(Max)Recovered Total wall Thickness (Min)Recovered Jacket wall Thickness (Min)Recovered Adhesive wall Thickness (Min)
    HSMC-E-130.355.72(0.225)1.27(0.050)1.20(0.047)0.64(0.025)0.56(0.022)
    HSMC-E-230.357.44(0.293)1.65(0.065)1.52(0.060)0.76(0.030)0.76(0.030)
    HSMC-E-340.5010.85(0.427)2.41(0.095)1.91(0.075)0.89(0.035)1.37(0.054)

    HSMC-D mm(inch)

    PartNumberSizeTotal Length as suppliedWorkable Length as suppliedInner Diameter as supplied (Min)Inner Diameter recovered (Max)Recovered Total Wall Thickness
    HSMC-D-11/822.0(0.87)12.7(0.50)3.2(0.125)0.58(0.023)1.22±0.15(0.048±0.006)
    HSMC-D-23/1625.4(1.00)15.2(0.60)4.8(0.187)1.52(0.060)1.57±0.20(0.062±0.008)
    HSMC-D-31/428.4(1.12)15.2(0.60)6.4(0.250)2.03(0.080)1.98±0.20(0.078±0.008)
    HSMC-D-43/831.8(1.25)18.3(0.72)9.5(0.375)2.29(0.090)2.08±0.25(0.082±0.010)
    HSMC-D-51/238.1(1.50)21.6(0.85)12.7(0.500)2.29(0.090)2.54±0.25(0.100±0.010)
