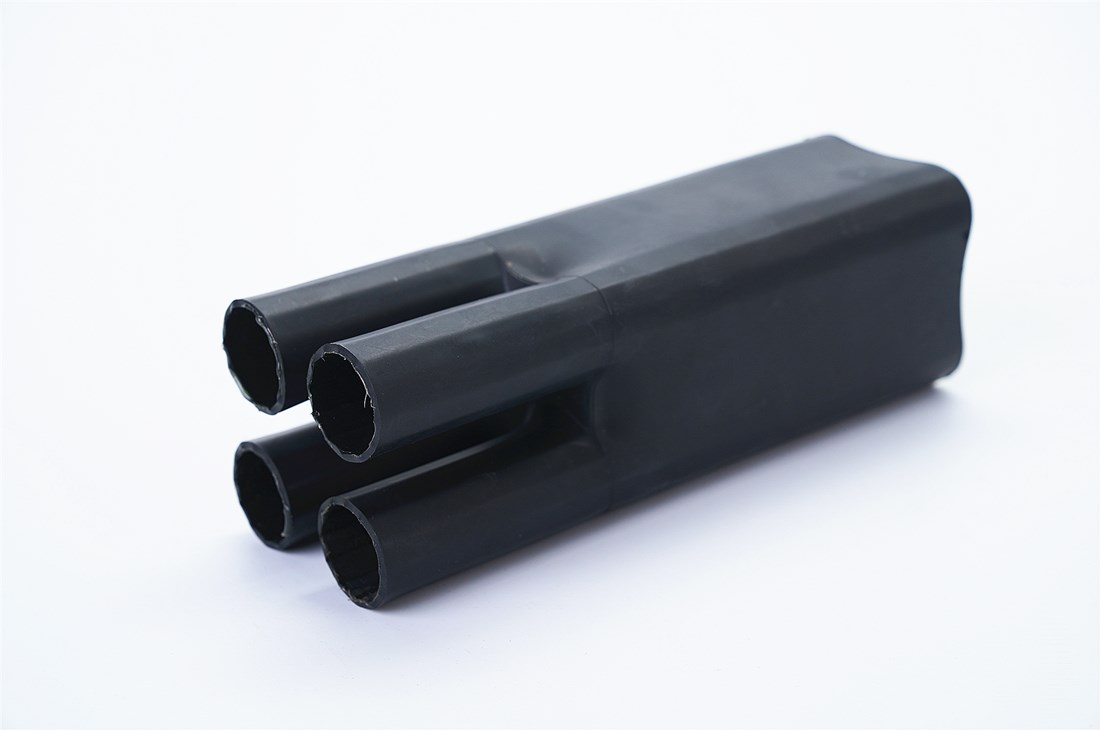

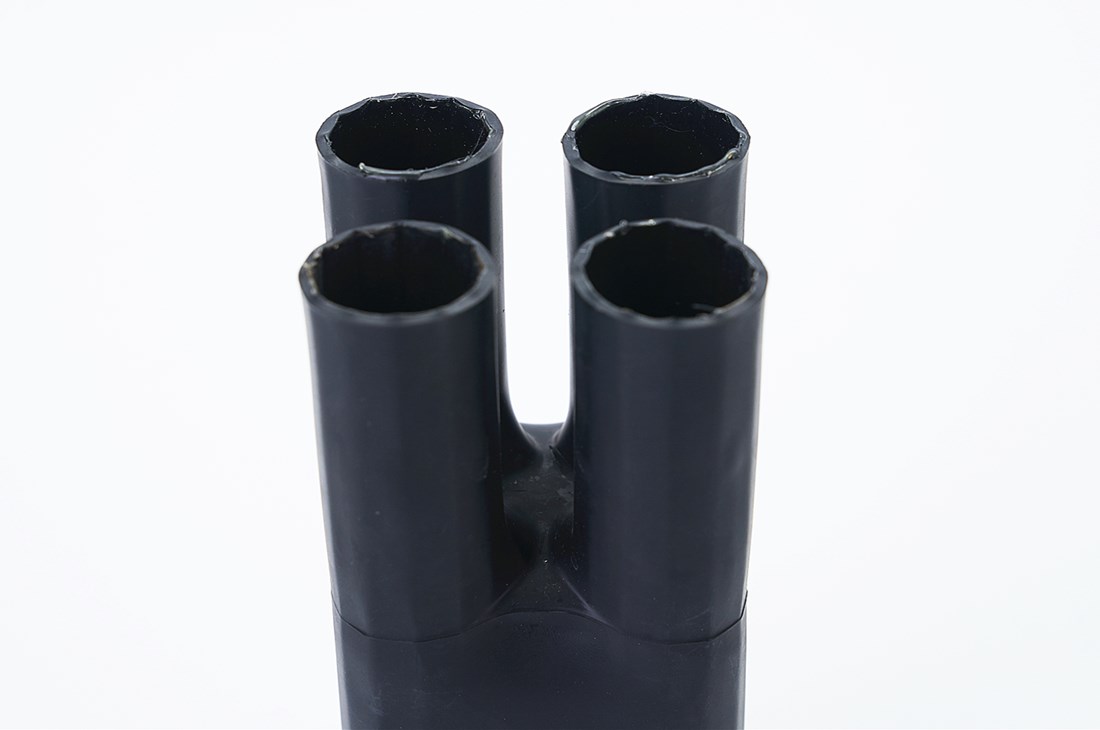

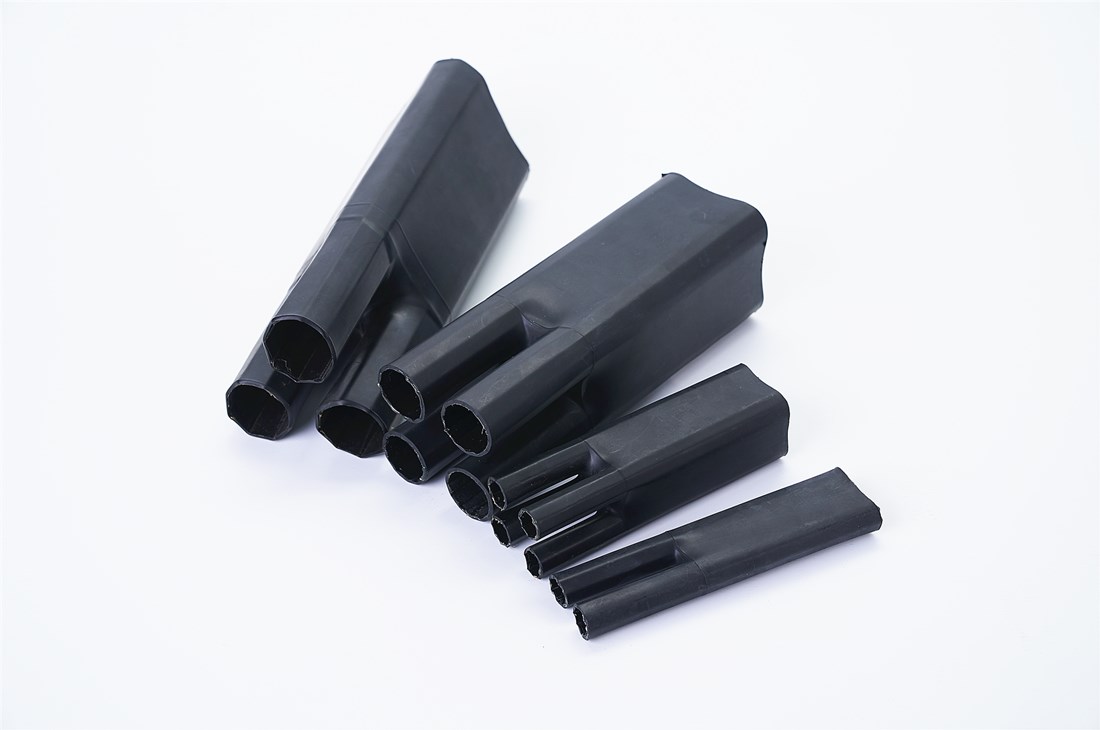

    Adhesive Lined Heat Shrink Cable Breakout

    Moodel:HSCB

    Adhesive Lined Heat Shrink Cable Breakout is made of Polyolefin with EVA Adhesive-lined. Its High Electrical Insulation, Excellent Mechanical Protection is very suitable for PVC, XLPE, and PILE Cable.

    Back to list >>

    Material: Polyolefin

    Shrink temperature: Start at 100℃, and shrink totally at 130℃

    Voltage Rating: 3 Voltage Grades (1kV, 10kV, 35kV)

    Color: black, red, milk-white(only for oil-resistant terminations)


    Application:

    Suitable for termination kits for PVC, XLPE, and PILE Cable.


    Property

    Test Method

    Standard Value

    Insulation breakout

    Oil resistant breakout

    Operating temperature  IEC 216 -55℃~100℃ -20℃~100℃
    Tensile strength  ASTM-D-2671  ≥13MPa  ≥12MPa
    Elongation  ASTM-D-2671  ≥300%  ≥300%
    Tensile strength after thermal aging  ASTM-D-2671  ≥11MPa  ≥10MPa
     120℃/168hrs
    Elongation after thermal aging  ASTM-D-2671  ≥230%  ≥230%
     120℃/168hrs
    Water absorption  ISO 62  ≤0. 1%  ≤0. 1%
    Volume resistance  IEC 93  ≥1×1014Ω. cm  ≥1×1014Ω. cm
    Oil resistance  ASTM-D-2671  —  ≥10MPa
    Tensile strength after dipping  70#cable
    oil/168hrs
      —  ≥10MPa
    Oil resistance  ASTM-D-2671  —  230%
    Elongation at break after dipping  70#cable
    oil/168hrs
      —  230%
    Dielectric strength  IEC 243  ≥20kV/mm  ≥20kV/mm

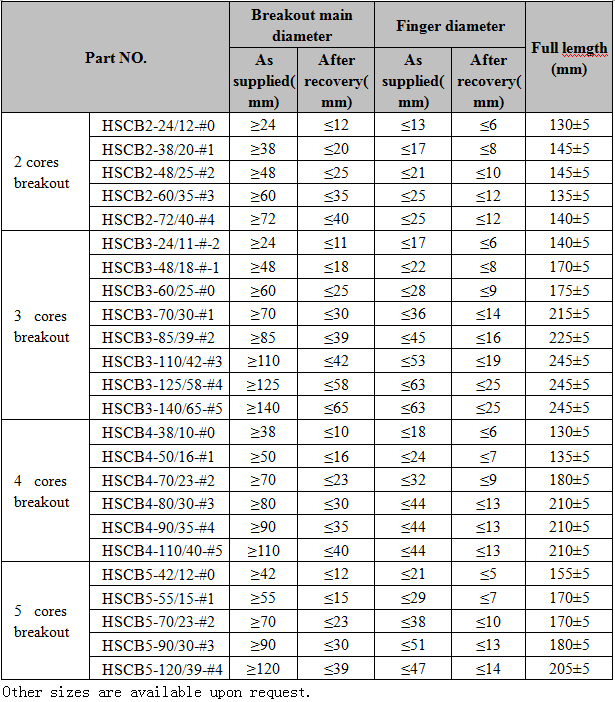

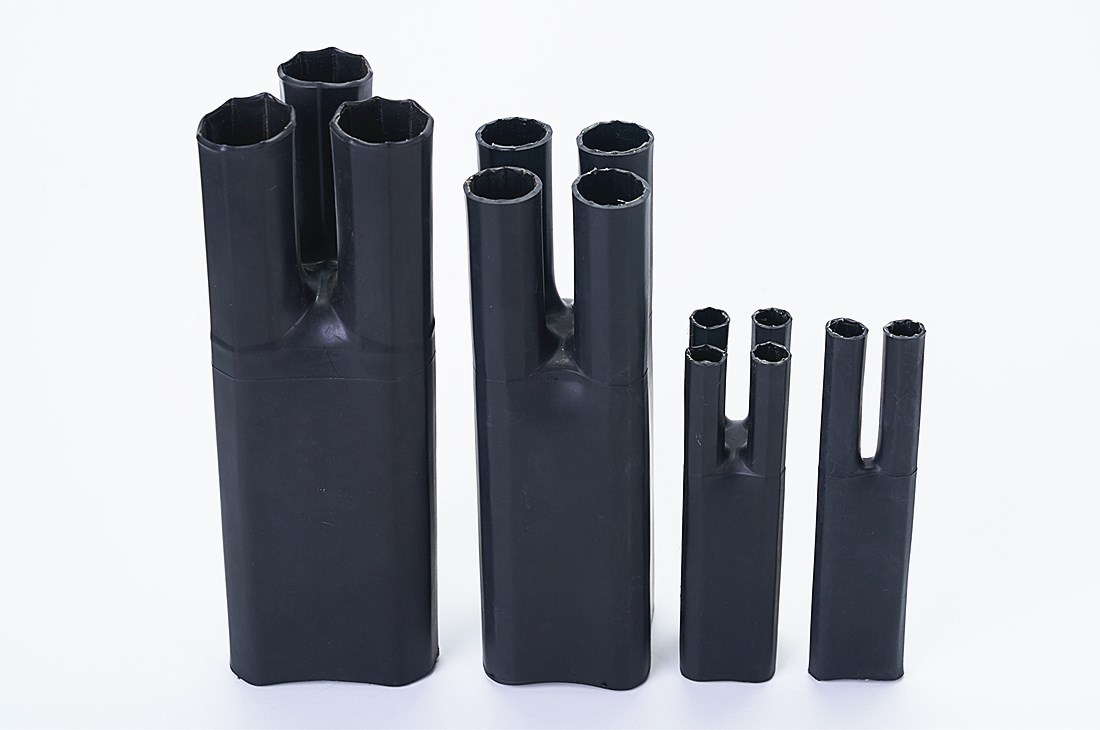

    Part NO.

    Breakout main diameter

    Finger diameter

    Full length (mm)

    Finger length (mm)

    As supplied(mm)

    After recovery(mm)

    As supplied(mm)

    After recovery(mm)

      2 cores
    breakout
      HSCB2-25/11  ≥25  ≤11  ≥10  ≤5  135±5  55±5
      HSCB2-30/13  ≥30  ≤13  ≥16  ≤7  145±5  60±5
      HSCB2-40/15  ≥40  ≤15  ≥20  ≤9  145±5  65±5
      HSCB2-50/17  ≥50  ≤17  ≥25  ≤11  140±5  60±5
      3  cores
    breakout
      HSCB3-27/17  ≥27  ≤17  ≥12  ≤5  130±5  50±5
      HSCB3-50/22  ≥50  ≤22  ≥19  ≤7  165±5  60±5
      HSCB3-60/28  ≥60  ≤28  ≥24  ≤8  170±5  65±5
      HSCB3-70/36  ≥70  ≤36  ≥29  ≤13  215±5  80±5
      HSCB3-90/45  ≥90  ≤45  ≥40  ≤15  220±5  90±5
      HSCB3-105/53  ≥105  ≤53  ≥44  ≤18  225±5  90±5
      HSCB3-130/63  ≥130  ≤63  ≥61  ≤24  230±5  85±5
      4  cores
    breakout
      HSCB4-40/18  ≥40  ≤18  ≥10  ≤5  130±5  55±5
      HSCB4-50/24  ≥50  ≤24  ≥15  ≤7  150±5  55±5
      HSCB4-70/32  ≥70  ≤32  ≥24  ≤9  175±5  75±5
      HSCB4-80/44  ≥80  ≤44  ≥30  ≤12  195±5  75±5
      HSCB4-95/44  ≥95  ≤44  ≥35  ≤12  200±5  80±5
      5  cores
    breakout
      HSCB5-40/21  ≥40  ≤21  ≥10  ≤5  150±5  55±5
      HSCB5-55/29  ≥55  ≤29  ≥15  ≤7  170±5  65±5
      HSCB5-70/38  ≥70  ≤38  ≥24  ≤9  175±5  65±5
      HSCB5-90/49  ≥90  ≤49  ≥30  ≤12  190±5  80±5

    Other sizes are available upon request.
