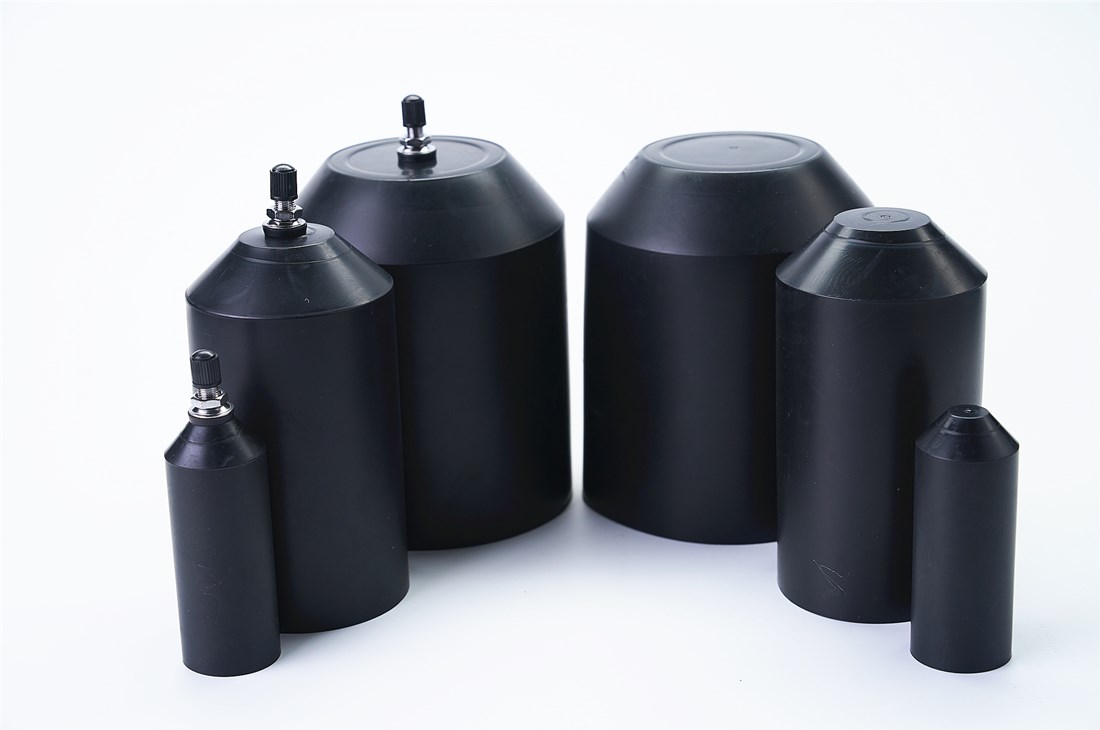

    Heat Shrink Cable End Cap

    Moodel:HSEC

    Heat Shrink Cable End Cap provides highly resistant to moisture, fungus, and weathering, and recommended for use both in open air and on underground power distribution cables .

    Back to list >>

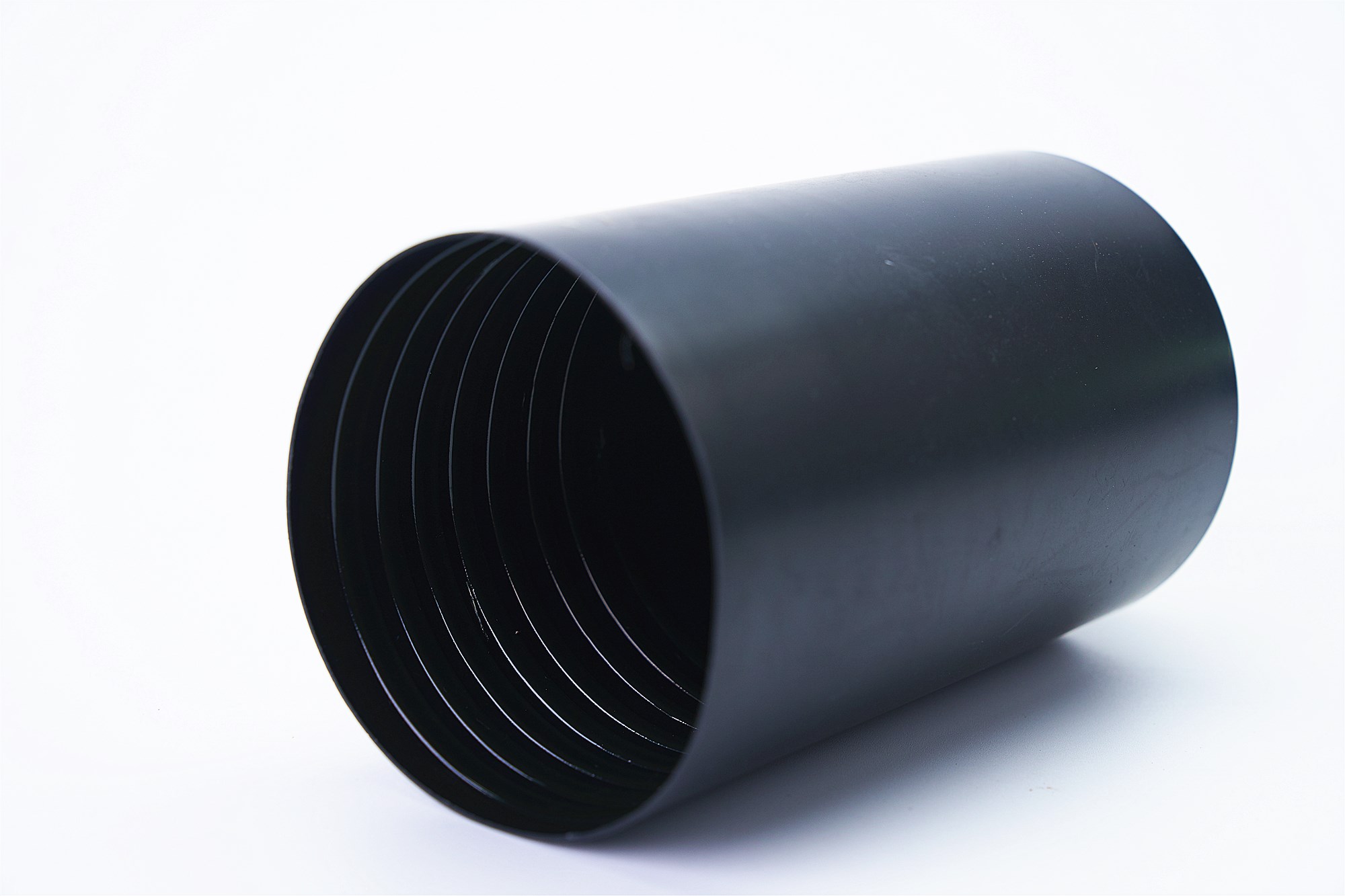

    Heat Shrink Cable End Cap is Designed with a layer of spiral coated hot melt adhesive in the internal surface of the end cap, which provides highly resistant to moisture, fungus, and weathering, and recommended for use both in open air and on underground power distribution cables with PVC, lead or XLPE sheaths.

    Property

    Test Method

    Typical Data

    Operating temperature

    IEC 216

    -55℃ to +110℃

    Tensile strength

    ASTM D 638

    >14 MPa

    Elongation at break

    ASTM D 638

    > 400%

    Density

    ASTM D 792

    1.05

    Elongation at break after aging

    150℃, 168hrs

    >300%

    Dielectric strength

    IEC 243

    >15KV/mm

    Volume resistance

    IEC 93

    >1014Ω.cm


    Part No.

    Inner Diameter

    After fully

    recovered Length

     ± 10

    After fully

    recovered Width

     ± 10

    Cable diameter

    As supplied

    (min)

    After fully

    recovered (max)

    Standard length end cap

    HSEC-12/ 4

    12

    4.0

    40

    2.6

    4-10

    HSEC-14/ 5

    14

    5.0

    45

    2.2

    5-12

    HSEC-20/ 6

    20

    6.0

    55

    2.8

    6-16

    HSEC-25/ 8.5

    25

    8.5

    68

    2.8

    10-20

    HSEC-35/ 16

    35

    16.0

    83

    3.3

    17-30

    HSEC-40/ 15

    40

    15.0

    83

    3.3

    18-32

    HSEC-55/ 26

    55

    26.0

    103

    3.5

    28-48

    HSEC-75/ 36

    75

    36.0

    120

    4.0

    45-68

    HSEC-100/ 52

    100

    52.0

    140

    4.0

    55-90

    HSEC-120/ 60

    120

    60.0

    150

    4.0

    65-110

    HSEC-145/ 60

    145

    60.0

    150

    4.0

    70-130

    HSEC-160/ 82

    160

    82.0

    150

    4.0

    90-150

    HSEC-200/ 90

    200

    90.0

    160

    4.2

    100-180

    Extended length end cap

    HSEC-L-14/ 5

    14

    5.0

    55

    2.2

    5-12

    HSEC-L-42/15

    42

    15.0

    110

    3.3

    18-34

    HSEC-L-55/ 23

    55

    23.0

    140

    3.8

    25-48

    HSEC-L-62/ 23

    62

    23.0

    140

    3.8

    25-55

    HSEC-L-75/ 32

    75

    32.0

    150

    4.0

    40-68

    HSEC-XL-75/ 36

    75

    36.0

    170

    4.2

    45-68

    HSEC-L-105/ 45

    105

    45.0

    150

    4.0

    50-90

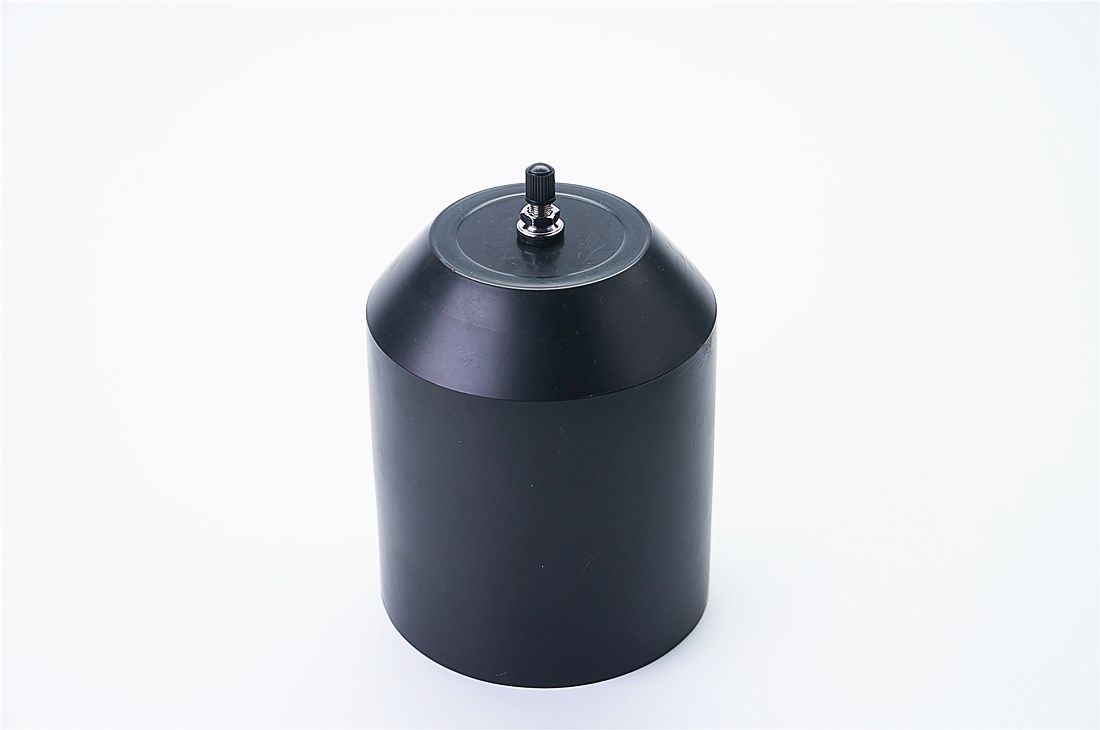

     End cap with valve is available on request.
