    Heat Shrink Identification Tubing

    Moodel:HSID

    Heat Shrink Identification Tubing (HSID) are designed to meet the wire and cable marking needs of manufacturers with high performance requirements. Made from permanent, flame retarded, radiation cross-linked heat-shrinkable polyolefin.

    Back to list >>

    Heat Shrink Identification Tubing (HSID) are designed to meet the wire and cable marking needs of manufacturers with high performance requirements. Made from permanent, flame retarded, radiation cross-linked heat-shrinkable polyolefin.

    Features


    >Permanent identification sleeves.

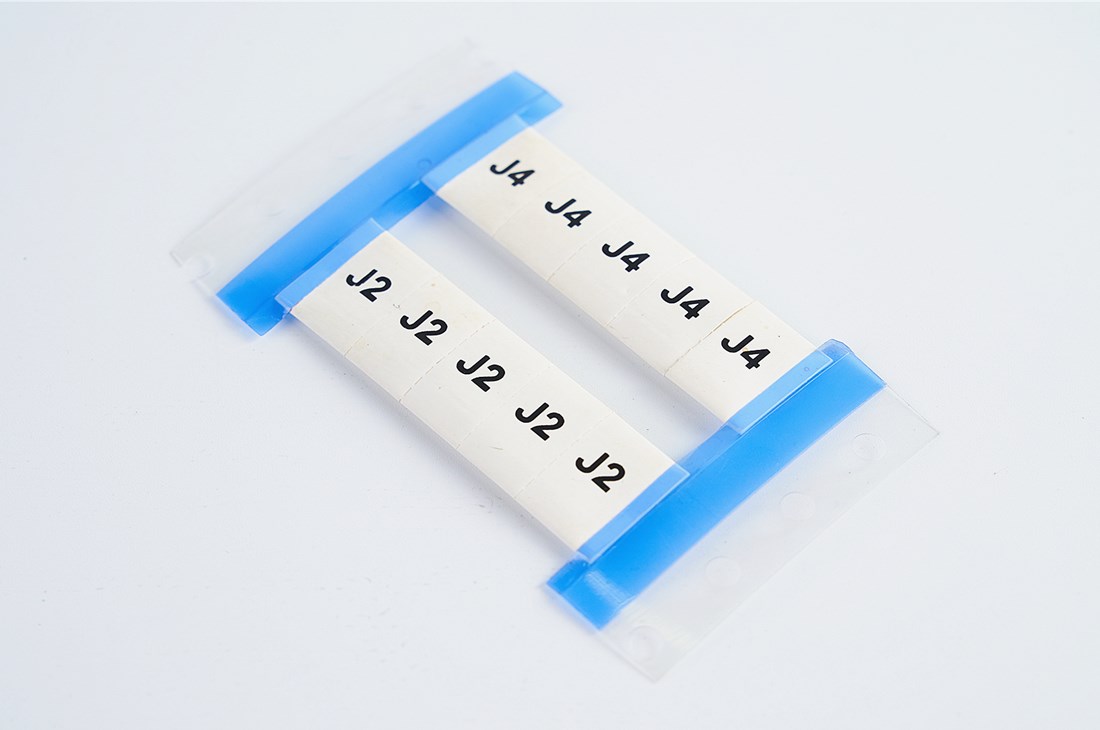

    >Computer-printable.

    >Light weight for aerospace applications.

    >Choice of Military grade & RoHS Compliant Material or Halogen free Material.

    >2:1 and 3:1 shrink ratio.

    >Flame retardant , VW-1.

    >Temperature rating +135℃/275°F

    >Quick recovery of heat sensitive areas.


    Temperature rating


    >Operating temperature range: –55°C to +125°C –67°F to +257°F

    >Minimum recovery temperature: +85°C/ +185°F

    >Totally shrink temperature: +115°C/+239°F

    >Maximum storage temperature +50°C /+122°F


    HSID-2X

    Product NumberExpanded As Supplied(mm)Recovered After Heating(mm)
    Inside DiameterFlat WidthDouble Wall ThicknessInside DiameterSingle Wall Thickness
    HSID-2X-1.62.00±0.203.7±0.30.48±0.10≤0.790.45±0.06
    HSID-2X-2.42.79±0.205.0±0.30.48±0.10≤1.180.49±0.06
    HSID-2X-3.23.64±0.236.3±0.40.48±0.10≤1.590.51±0.06
    HSID-2X-4.85.26±0.258.9±0.40.49±0.10≤2.360.54±0.06
    HSID-2X-6.46.92±0.2811.5±0.40.50±0.10≤3.180.56±0.06
    HSID-2X-9.510.2±0.3216.7±0.50.51±0.11≤4.750.59±0.06
    HSID-2X-12.713.5±0.3621.8±0.60.52±0.11≤6.350.60±0.07
    HSID-2X-19.120.1±0.4032.2±0.60.53±0.11≤9.530.62±0.07
    HSID-2X-25.426.7±0.4542.5±0.70.55±0.12≤12.70.63±0.07
    HSID-2X-38.039.8±0.5163.2±0.80.57±0.12≤19.10.64±0.07
    HSID-2X-51.053.0±0.5683.9±0.90.58±0.13≤25.40.64±0.08
    HSID-2X-76.079.4±0.56125.3±1.00.59±0.13≤38.10.64±0.09

    HSID-3X

    Product NumberExpanded As Supplied(mm)Recovered After Heating(mm)
    Inside DiameterFlat WidthDouble Wall ThicknessInside DiameterSingle Wall Thickness
    HSID-3X-1.62.00±0.203.7±0.30.47±0.10≤0.530.52±0.06
    HSID-3X-2.42.79±0.205.0±0.30.47±0.10≤0.790.57±0.06
    HSID-3X-3.23.64±0.236.3±0.40.48±0.10≤1.060.61±0.06
    HSID-3X-4.85.26±0.258.9±0.40.49±0.10≤1.590.67±0.06
    HSID-3X-6.46.92±0.2811.5±0.40.50±0.10≤2.360.71±0.06
    HSID-3X-9.510.2±0.3216.7±0.50.52±0.11≤3.180.77±0.06
    HSID-3X-12.713.5±0.3621.8±0.60.53±0.11≤4.750.80±0.07
    HSID-3X-19.120.1±0.4032.2±0.60.55±0.11≤6.350.84±0.07
    HSID-3X-25.426.7±0.4542.5±0.70.56±0.12≤8.470.86±0.07
    HSID-3X-38.039.8±0.5163.2±0.80.57±0.12≤12.90.89±0.07
    HSID-3X-51.053.0±0.5683.9±0.90.57±0.1≤17.20.90±0.08
    HSID-3X-76.079.4±0.56125.3±1.00.57±0.13≤25.80.92±0.09

    Remarks: Two packing ways:

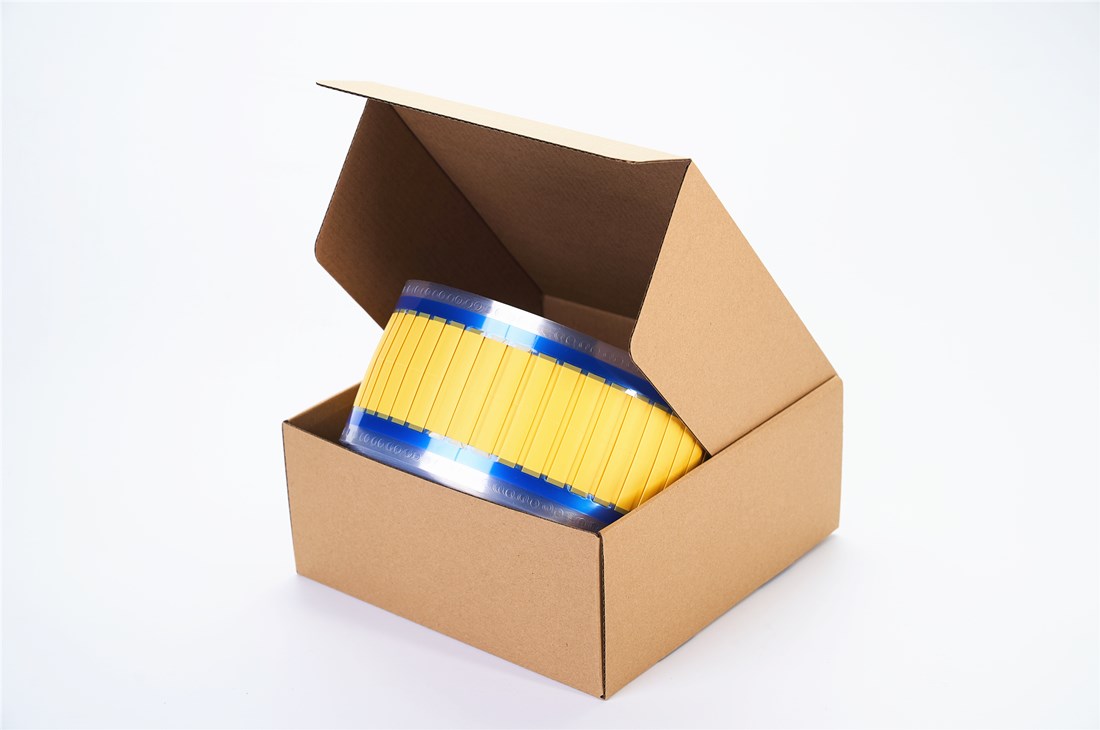

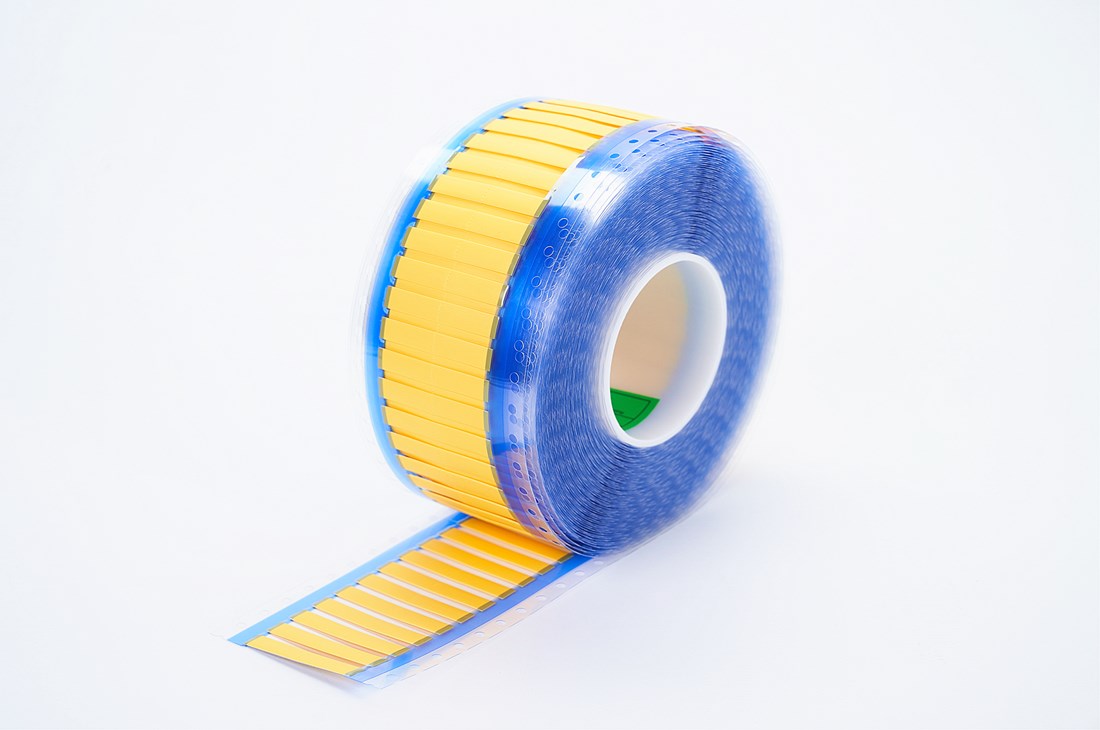

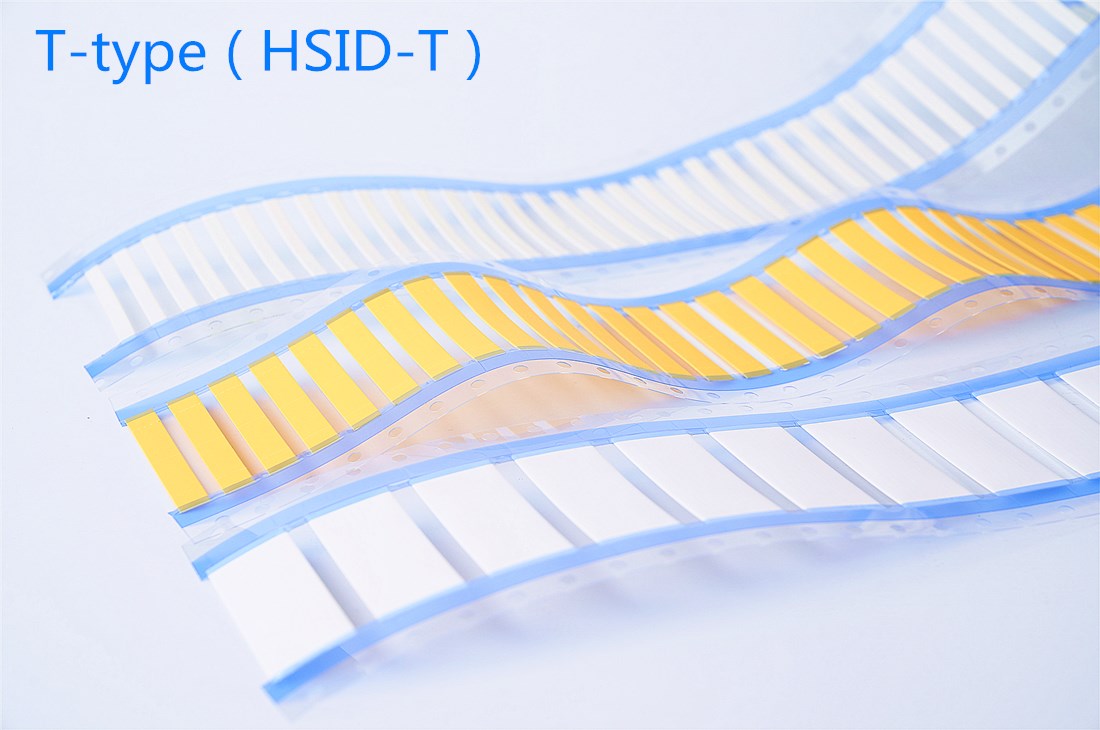

    1.Cut in 55mm/pc, adhibit together in a line and packed in roll (T type)

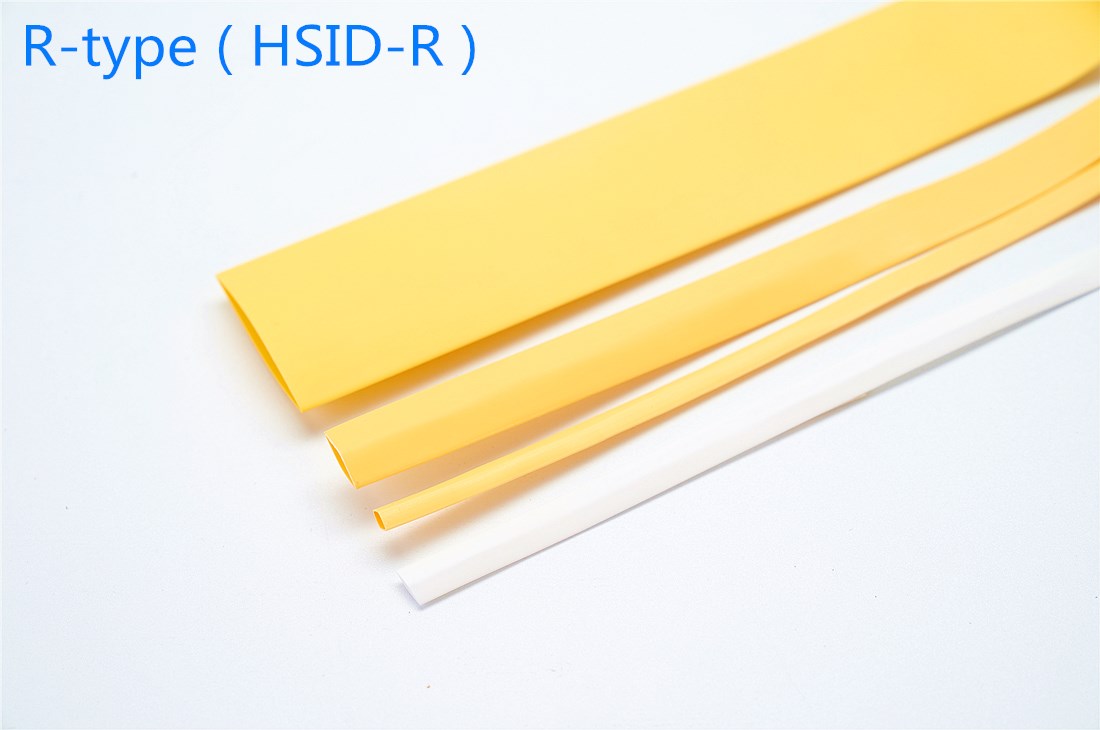

    2.Not cut and packed in roll (R type).
