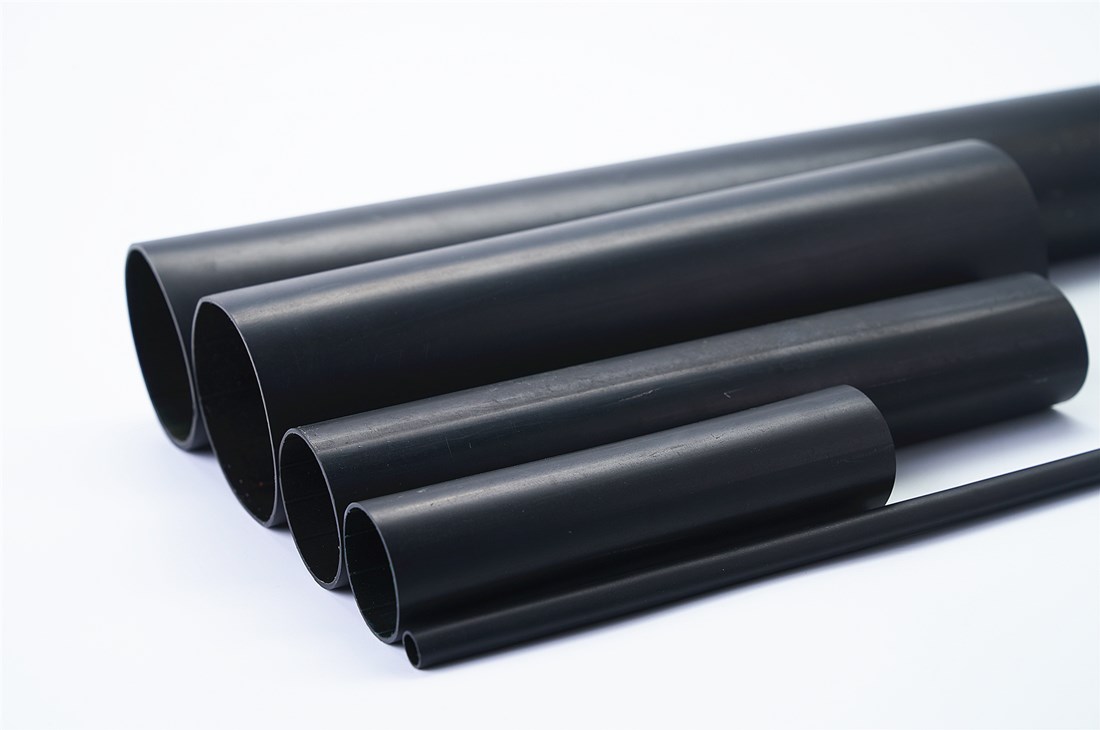

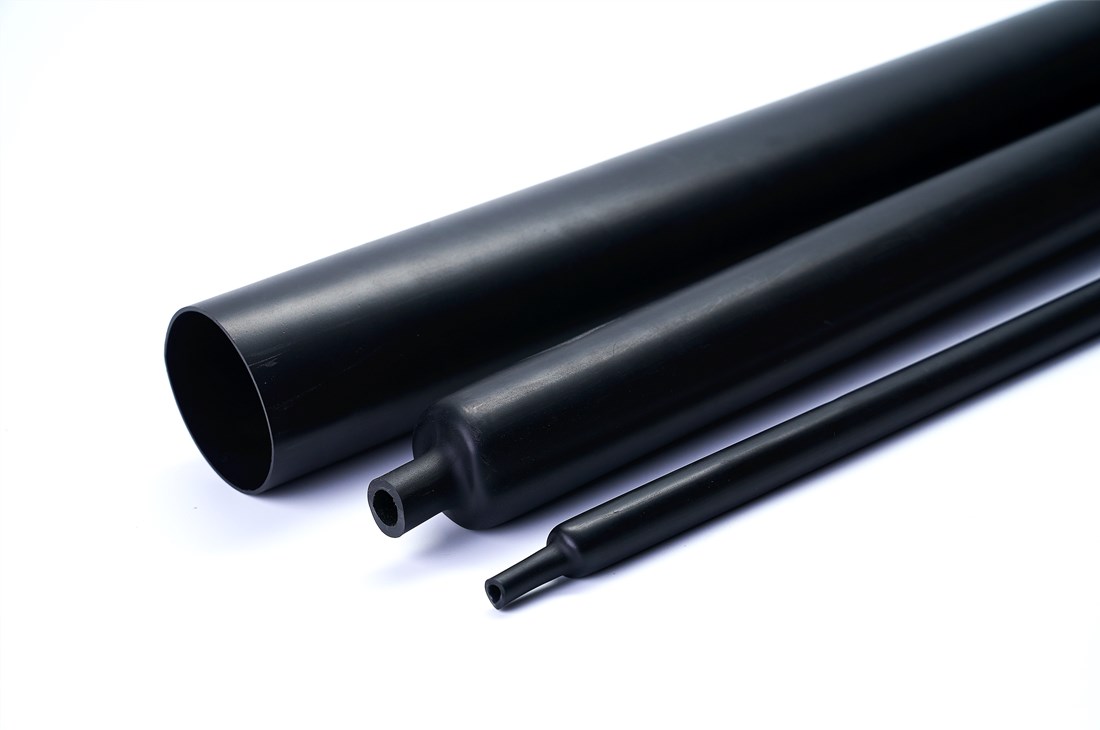

    Heavy Wall Heat Shrink Tubing

    Moodel:WHST

    WHST is recommended to apply for light cable and wire harnesses, where requiring waterproofing, protection of connector components, and thus encapsulates and seals components contained within the tubing.

    Back to list >>

    Heavy Wall Heat Shrink Tubing (WHST) have properties of excellent insulating, environmental sealing, and resistant to

    impact and abrasion for applications to seal and protect electrical and communication connections, providing excellent

    mechanical protection to cable joints and terminations,  3:1 shrink ratio allows it easily fit over irregular shape and large

    connectors. WHST is recommended to apply for light cable and wire harnesses, where requiring waterproofing, protection

    of connector components, and thus encapsulates and seals components contained within the tubing.


    Features


    >Resistant to UV-radiation

    >High electrical insulation

    >Superior mechanical property

    >Minimum fully recovery temperature: 120℃

    >Standard color: Black


    PropertyTest MethodTypical Data
    Operating temperatureIEC 216-55℃ to +110℃
    Tensile strengthASTM D 2671≥14MPa
    Tensile strength after aging (150℃/168hrs.)ASTM D 2671≥12MPa
    Elongation at breakASTM D 2671≥400%
    Elongation at break after aging (150℃/168hrs.)ASTM D 2671≥300%
    DensityASTM D 7921.05g/cm3
    Longitudinal shrinkageUL 2240 to -10%
    Dielectric strengthIEC 243≥20kV/mm
    Volume resistanceIEC 931014Ω.cm>10  Ω.cm
    EccentricityASTM D 2671<30%
    Copper stabilityASTM D 2671Pass
    Resistance to stress cracking (50℃)ASTM D 1693No cracking
    Water absorption (23℃/ 14days)ISO 62<0.15%

    Thermoplastic Adhesive

    PropertyTest MethodTypical Data
    Water absorptionISO 62<0.2%
    Softening pointASTM D E2885℃
    Peel strength (PE)DIN 306724 N/cm
    Copper stabilityASTM D 2671Non-corrosive
    Resistance to fungus and decayISO 846Pass


    Normal size

    (mm)

    As supplied(mm)After recovered (mm)Tube shapeStandard

    length

    Inside diameter(Min.)Inside diameter(Max.)Wall thickness(Min.)
    WHST-A   9/3931.8O1000-1500mm
    WHST-A   13/41342.4O1000-1500mm
    WHST-A   22/62262.7O1000-1500mm
    WHST-A   33/ 83383.2O1000-1500mm
    WHST-A  40/1240124.1O1000-1500mm
    WHST-A  45/1245124.1O1000-1500mm
    WHST-A  55/1655164.1O1000-1500mm
    WHST-A  75/ 2275224.1O1000-1500mm
    WHST-A  85/ 2585254.3O1000-1500mm
    WHST-A  95/ 3095304.3O1000-1500mm
    WHST-A 105/ 30105304.3O1000-1500mm
    WHST-A 130/ 36130364.31000-1500mm
    WHST-A 160/50160504.31000-1500mm
    WHST-A 180/50180504.31000-1500mm
    WHST-A 200/60200604.31000-1500mm

    Notes:


    1. WHST-A is with Hot Melting Adhesive, Without Adhesive product(WHST) is available upon request.

    2. Special size, cutting pieces are available upon request.

    3. Tube shape:  “O” : Round or Oval,  “—” : Flat
