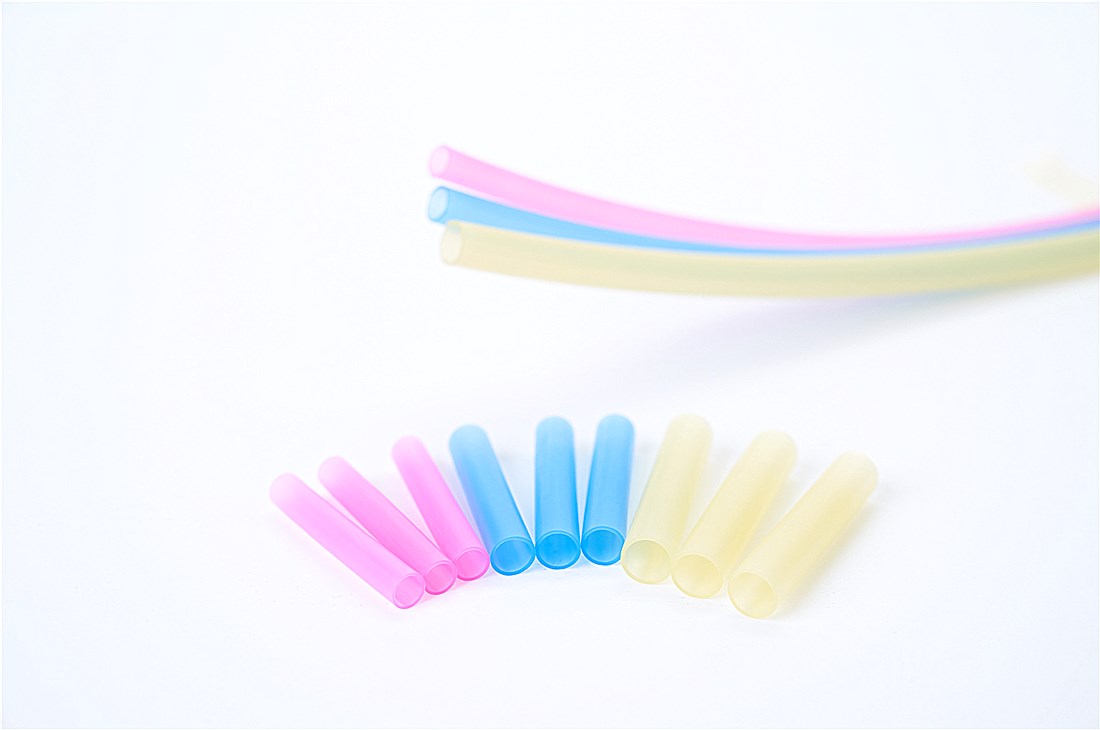

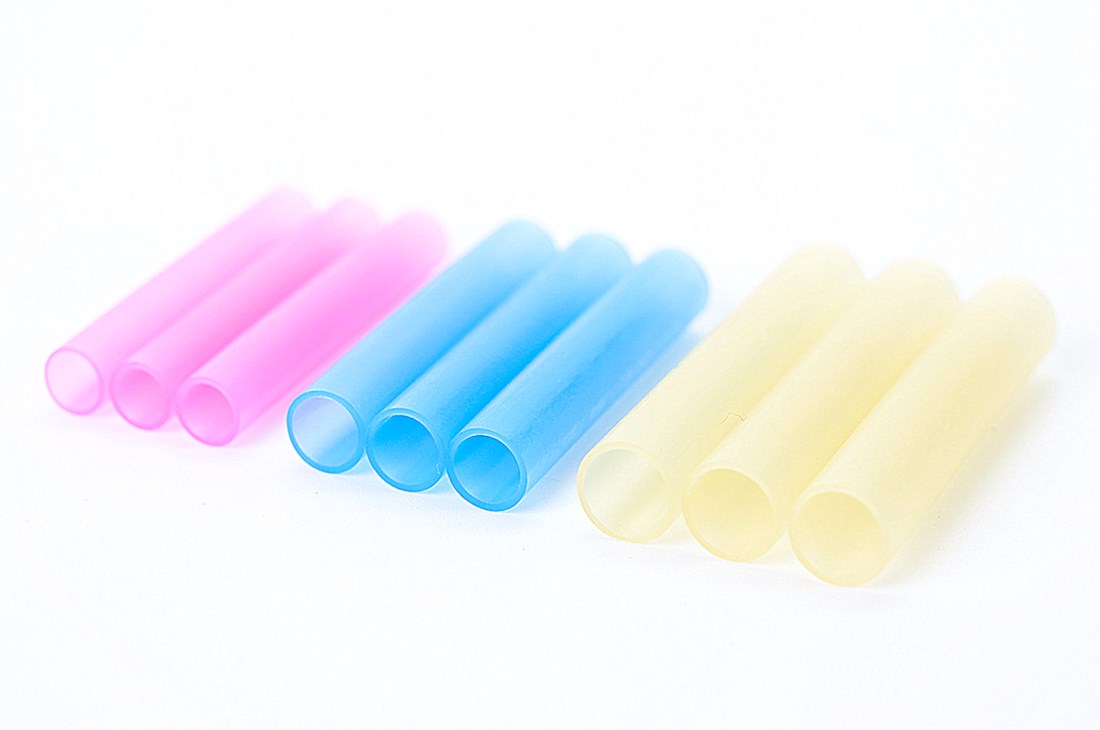

    Crimp Sealing Heat Shrinkable Tubing

    Moodel:CHST

    Crimp Sealing Heat Shrinkable Tubing (CHST) is applied to terminals and crimp splices. Providing excellent water proof and corrosion resistance and completely insulates and protects electrical connections.

    Back to list >>

    >Shrink ratio: 3:1

    >Abrasion and corrosion resistance

    >Water proof and moisture resistance

    >Operating temperature: -55℃to +125℃

    >Minimum shrink temperature: 125℃

    >Complete Shrink Temperature: 140℃

    >Standard color: Red, Blue, Yellow


    Test ltem

    Characterisrics

    Test condition

    Un-aged

    Tensile strength

    Min. 1.40 kgf/

    Room temp.

    Elongation

    Min. 200%

    Aged

    Tensile strength

    Min. 0.99 kgf/

    158℃/7 days

    Elongation

    Min. 100%

    Voltage withstand and breakdown Voltage(Un-aged)

    Withstand 2.5 KV for 1minute and breakdown

    Room temp.

    Voltage withstand and breakdown Voltage(Aged)

    Withstand 2.5 KV for 1minute and breakdown at least half of un-aged breakdown voltage

    158℃/7 days

    Copper corrosion

    No corrosion of bare copper

    158℃/7 days

    Copper stability

    No sign of degradation Min.Elongation 100%

    158℃/7 days

    Cold bend

    No crack

    -30℃/1 hrs

    Maximum secant modulus(2%)

    17.65 kgf/

    Volume resistivity

    Min.1014Ω-cm

    Heat shock

    No crack

    250℃/4 hrs


    SizeColorAs supplied(mm)After recovered (mm)Cut length(mm)Standard length(m/spool)
    I.D.Total Thickness (Nom.)I.D(Max.)Thickness(Min)

    CHST-1

    Red

    4.7±0.3

    0.45

    1.40

    1.00/0.35

    38

    100

    CHST -2

    Blue

    5.7±0.3

    0.45

    1.55

    1.1/0.40

    38

    100

    CHST -3

    Yellow

    6.7±0.3

    0.50

    2.1

    1.1/0.45

    42

    100
