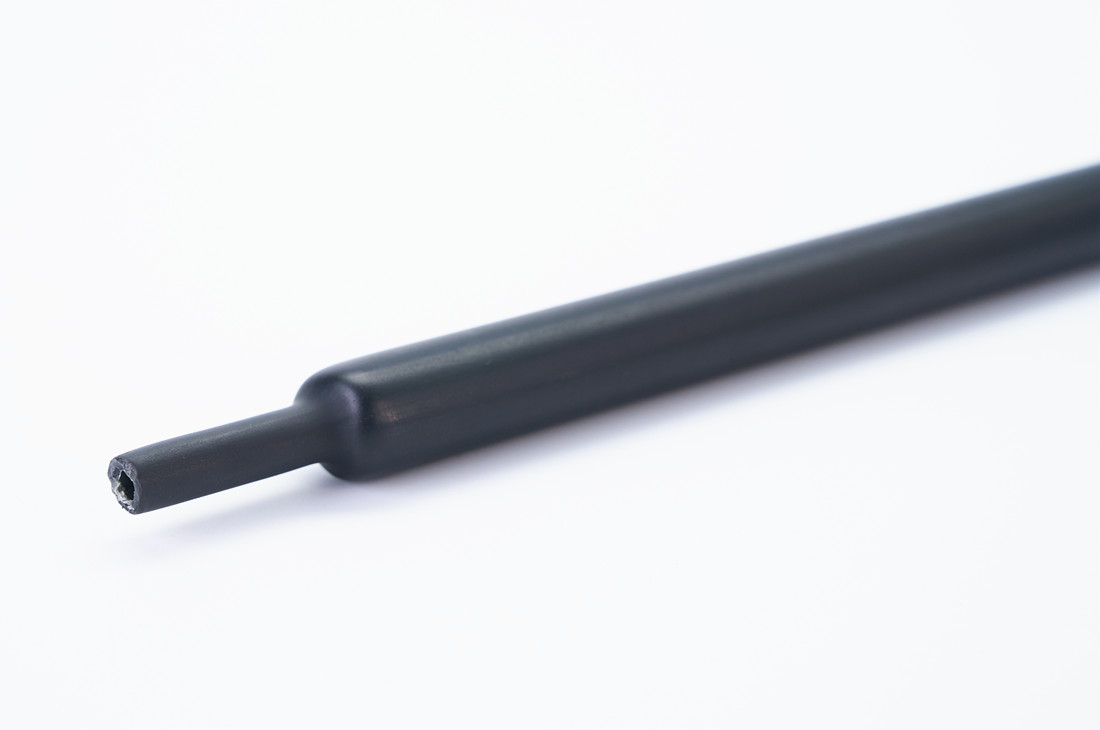

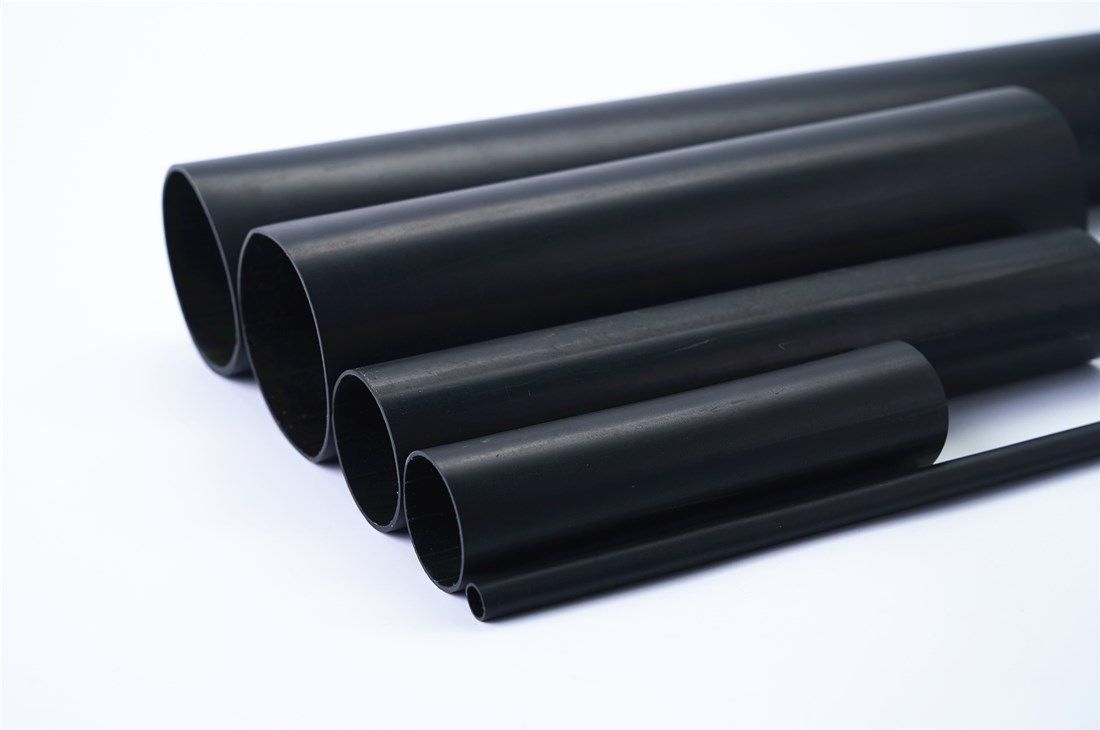

    Medium Wall Heat Shrink Tubing

    Moodel:MHST / MHST-A

    Medium wall heat shrink tubing (MHST-A) is designed for applications to seal and protect electrical splices, cable terminations and joints where electrical insulation and water proof are required.

    Back to list >>

    >Resistant to UV-radiation

    >High electrical insulation

    >Superior mechanical property

    >Minimum fully recovery temperature: 120℃

    >Standard color: Black


    PropertyTest MethodTypical Data
    Operating temperatureIEC 216-55℃ to +110℃
    Tensile strengthASTM D 2671≥14Mpa≥
    Tensile strength after aging (150℃/168hrs.)ASTM D 2671≥12MPa
    Elongation at breakASTM D 2671≥400%
    Elongation at break after aging (150℃/168hrs.)ASTM D 2671≥300%
    DensityASTM D 7921.05g/cm3
    Longitudinal shrinkageUL 2240 to -10%
    Dielectric strengthIEC 243≥20kV/mm
    Volume resistanceIEC 93>1014Ω.cm
    EccentricityASTM D 2671<30%
    Copper stabilityASTM D 2671Pass
    Resistance to stress cracking (50℃)ASTM D 1693No cracking
    Water absorption (23℃/14days)ISO 62<0.15%



    PropertyTest MethodTypical Data
    Water absorptionISO 62<0.2%
    Softening pointASTM D E2885℃
    Peel strength (PE)DIN 306724N/cm
    Copper stabilityASTM D 2671Non-corrosive
    Resistance to fungus and decayISO 846Pass


    Normal size (mm)As supplied(mm)After recovered (mm)Tube shapeStandard length
    Inside diameter (Min.)Inside Diameter (Max.)Wall thickness (Min.)
    MHST-A  8/2

    8

    2

    1.7

    O

    1000-1500mm
    MHST-A  12/3

    12

    3

    2.0

    O

    1000-1500mm
    MHST-A  16/5

    16

    5

    2.2

    O

    1000-1500mm
    MHST-A  19/5

    19

    5

    2.5

    O

    1000-1500mm
    MHST-A  25/6

    25

    6

    2.5

    O

    1000-1500mm
    MHST-A  28/6

    28

    6

    2.5

    O

    1000-1500mm
    MHST-A  33/8

    33

    8

    2.5

    O

    1000-1500mm
    MHST-A  40/12

    40

    12

    2.5

    O

    1000-1500mm
    MHST-A  55/16

    55

    16

    2.7

    O

    1000-1500mm
    MHST-A  65/19

    65

    19

    2.8

    O

    1000-1500mm
    MHST-A  75/22

    75

    22

    3.0

    O

    1000-1500mm
    MHST-A  85/25

    85

    25

    3.0

    O

    1000-1500mm
    MHST-A  95/25

    95

    25

    3.0

    O

    1000-1500mm
    MHST-A  115/34

    115

    34

    3.0

    O

    1000-1500mm
    MHST-A  140/42

    140

    42

    3.0

    O

    1000-1500mm
    MHST-A  160/50

    160

    50

    3.0

    O

    1000-1500mm
    MHST-A  180/58

    180

    58

    3.0

    O

    1000-1500mm
    MHST-A  205/65

    205

    65

    3.0

    O

    1000-1500mm
    MHST-A  235/65

    235

    65

    3.0

    O

    1000-1500mm
    MHST-A  265/75

    265

    75

    3.0

    O

    1000-1500mm
    MHST-A  300/85

    300

    85

    3.0

    O

    1000-1500mm
    MHST-A 350/100

    350

    100

    3.0

    O

    1000-1220mm

    Remarks:

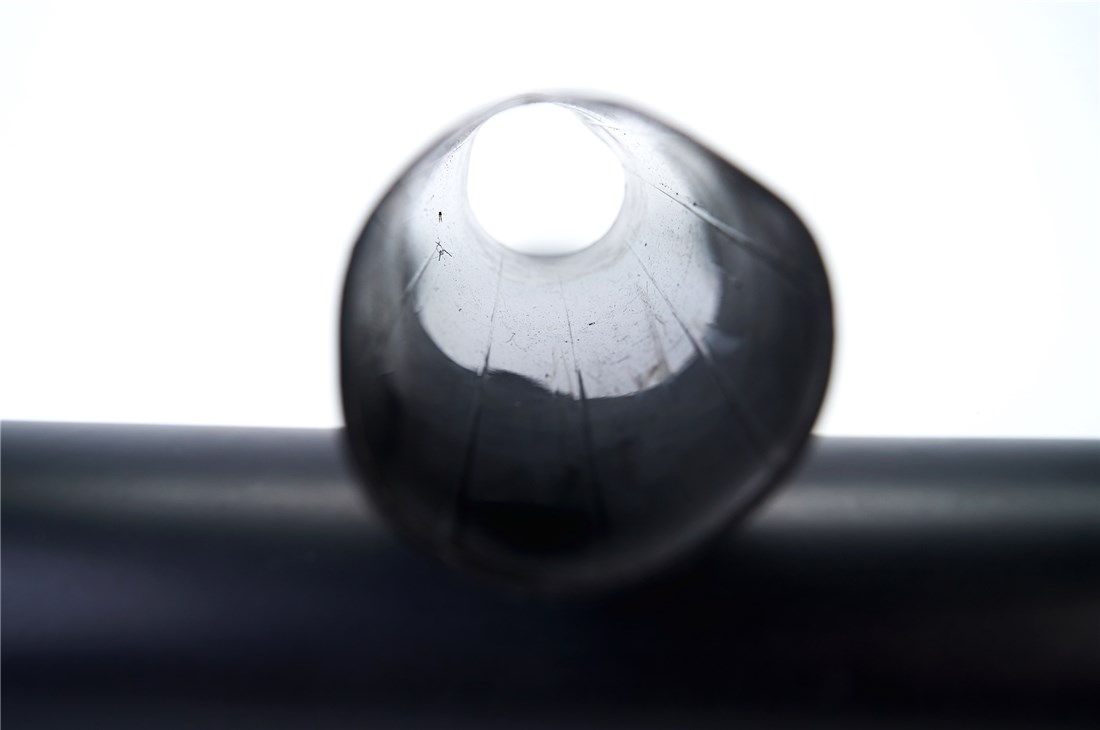

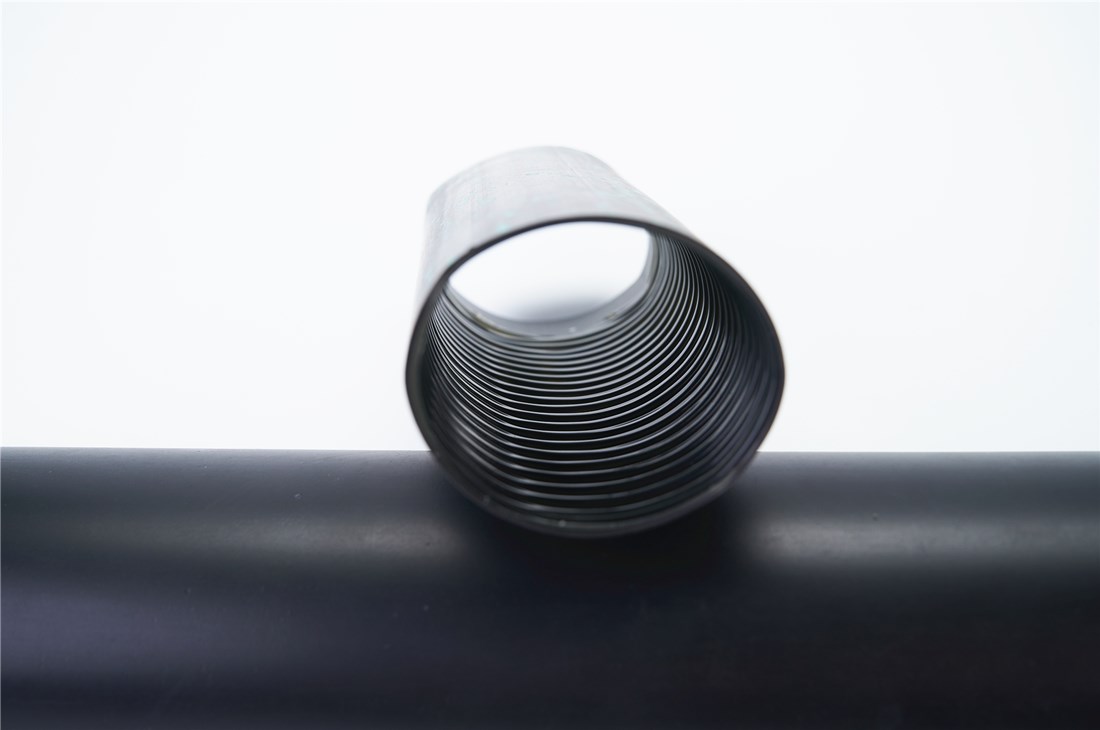

    1. MHST-A is with Hot Melting Adhesive, Without Adhesive product(MHST) is available upon request.

    2. Cutting pieces are available on request.

    3. Tube shape:  “O” : Round or Oval,  “—”: Flat
