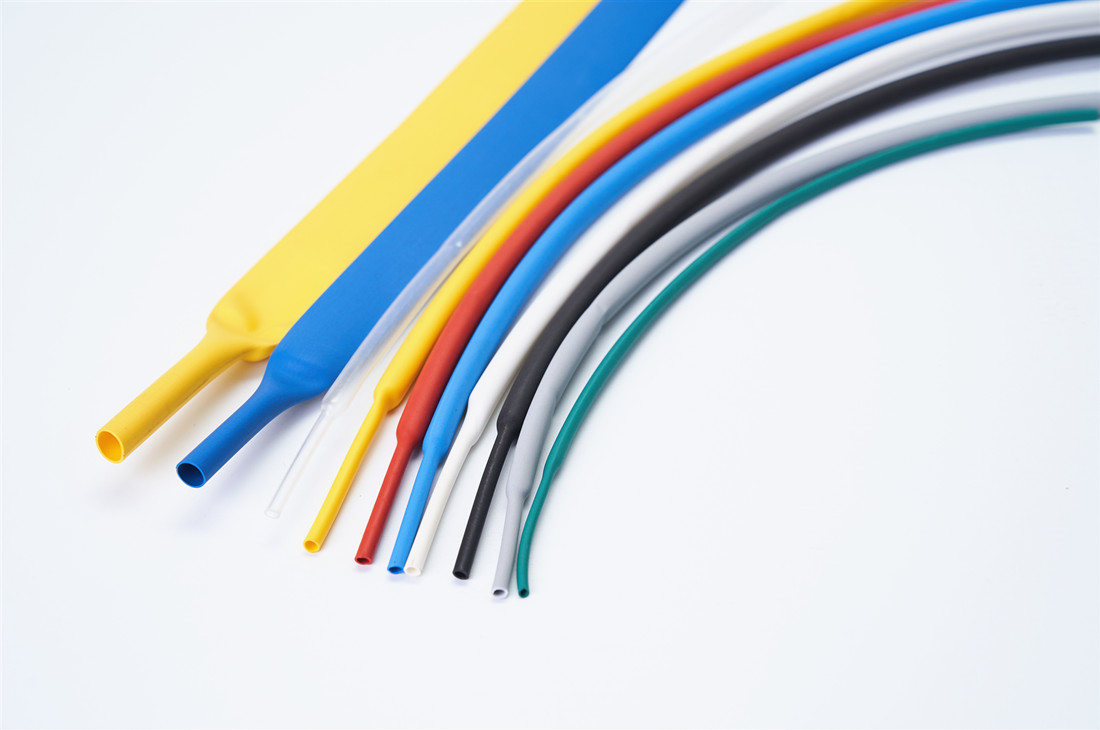

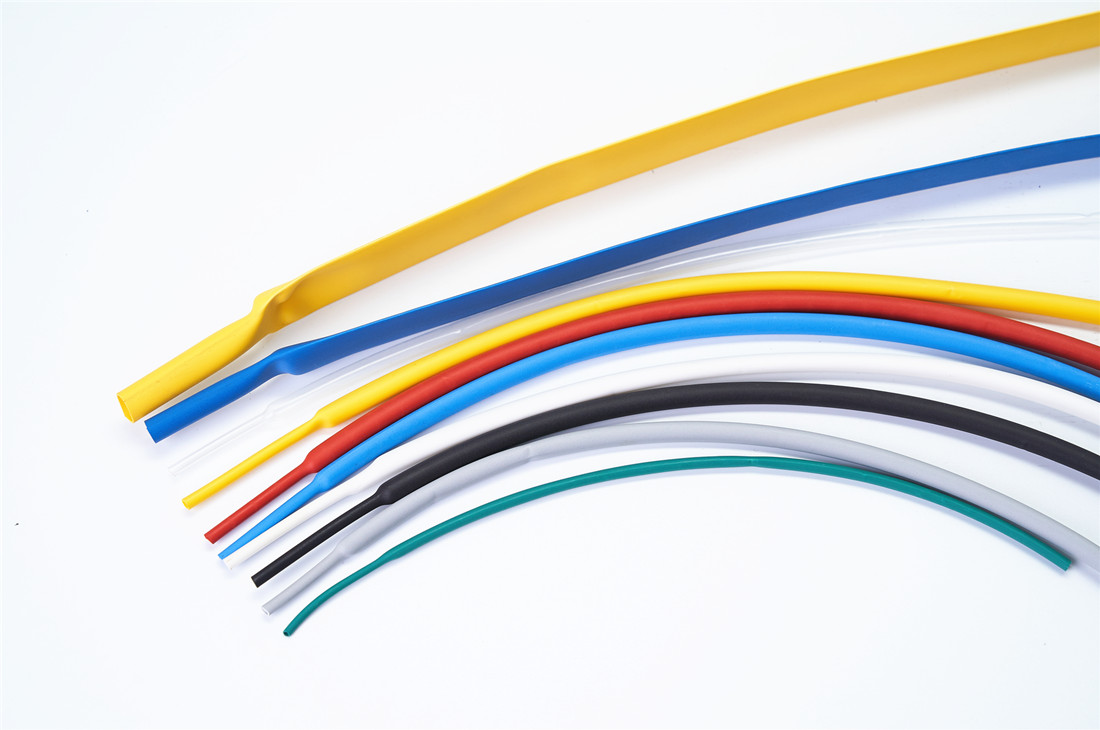

    Halogen Free Heat Shrink Tubing

    Moodel:HHST

    Halogen Free Heat Shrink Tubing is made of Polyolefin, Thin Wall, with 2:1/3:1 Shrinking Ratio,It is VW-1 Flame-retardant,and Rohs Compliant,Sizes are from 0.6mm to 250mm wide range

    Back to list >>

    Polyolefin Material, 125℃, UL/CSA VW-1, 2:1 or 3:1 shrink ratio, flexible, fast shrinking, flame-retardant, RoHS compliant, all kind of color, sizes from 0.6mm-250mm.

    TEST STANDARD :UL 224VW-1C-UL CSA C 22.2 OFT RoHs Compliant

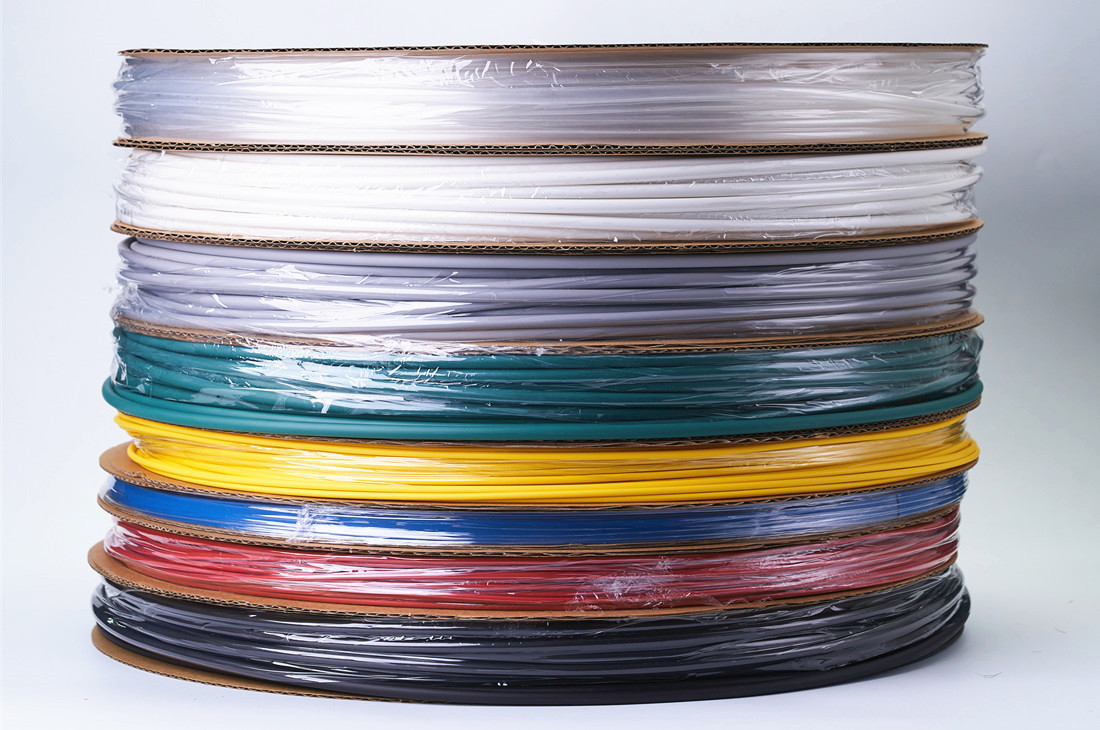

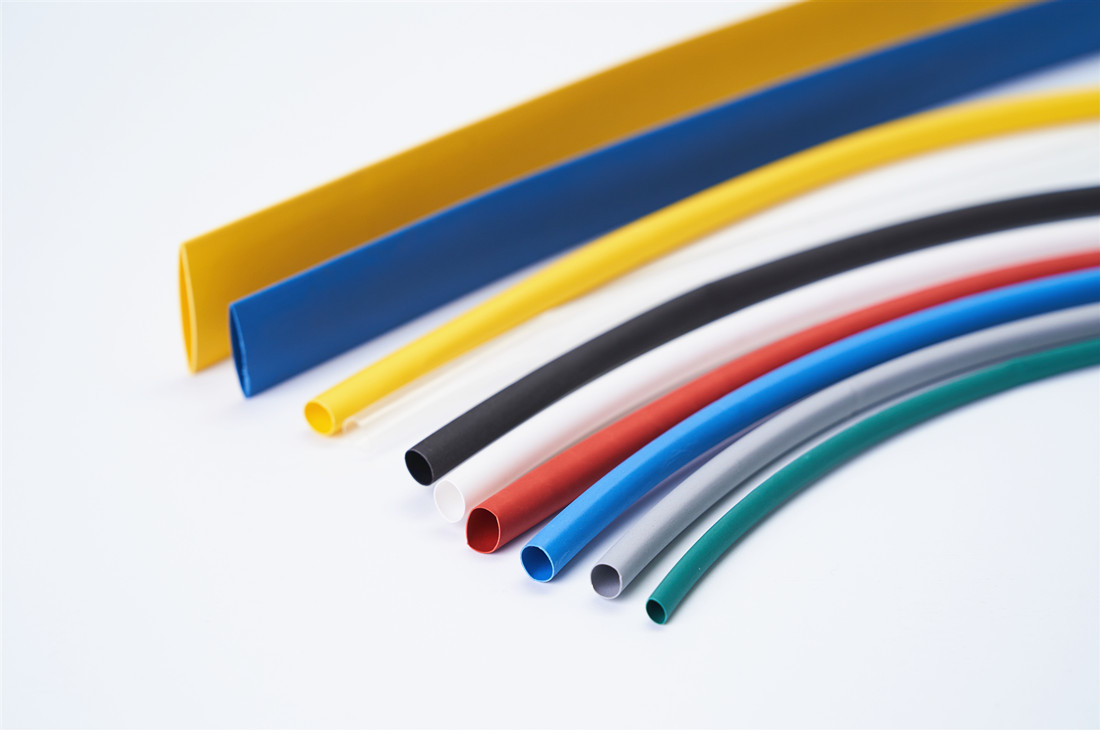

    COLORS :Black, Red, Blue, White, Yellow, Green, Clear, Yellow-Green, etc. (Other colors are available on request.)
    Shrinking Ratio :2:1, 3:1
    Rated voltage:600V


    ItemValue
    Shrinking temperatureStart at 70℃
    Operating temperature-55℃~125℃
    Redial shrinking ratio≥50%
    Longitudinal shrinkage≤5%
    Tensile strength≥14Mpa
    Volume resistance>1014 Ω/cm
    Dielectric strength≥15 KV/mm
    FlammabilityUL224, VW-1


    HHST-2X

    Size (mm)

    As Supplied(mm)

    After Recovery(mm)

    Standard Package (m/spool)

    The Range Of Diameter (mm)

    I.D.

    Normal W.T.

    Max.I.D.

    Normal W.T.

    φ0.6

    0.9±0.2

    0.20±0.05

    ≤0.40

    0.33±0.10

    200

    0.5~0.7

    φ0.8

    1.1±0.2

    0.20±0.05

    ≤0.50

    0.33±0.10

    200

    0.6~0.8

    φ1.0

    1.5±0.2

    0.20±0.05

    ≤0.65

    0.36±0.10

    200

    0.75~0.9

    φ1.5

    2.0±0.2

    0.20±0.05

    ≤0.85

    0.36±0.10

    200

    0.95~1.4

    φ2.0

    2.5±0.2

    0.25±0.05

    ≤1.00

    0.45±0.10

    200

    1.1~1.8

    φ2.5

    3.0±0.2

    0.25±0.05

    ≤1.30

    0.45±0.10

    200

    1.4~2.3

    φ3.0

    3.5±0.2

    0.25±0.05

    ≤1.50

    0.45±0.10

    200

    1.6~2.7

    φ3.5

    4.0±0.2

    0.25±0.05

    ≤1.80

    0.45±0.10

    200

    1.9~3.2

    φ4.0

    4.5±0.2

    0.25±0.05

    ≤2.00

    0.45±0.10

    200

    2.1~3.6

    φ4.5

    5.0±0.2

    0.30±0.08

    ≤2.30

    0.56±0.10

    100

    2.4~4.0

    φ5.0

    5.5±0.2

    0.30±0.08

    ≤2.50

    0.56±0.10

    100

    2.6~4.5

    φ5.5

    6.0±0.2

    0.30±0.08

    ≤2.75

    0.56±0.10

    100

    2.85~5.0

    φ6.0

    6.5±0.2

    0.30±0.08

    ≤3.00

    0.56±0.10

    100

    3.1~5.4

    φ7.0

    7.5±0.3

    0.30±0.08

    ≤3.50

    0.56±0.10

    100

    3.7~6.3

    φ8.0

    8.5±0.3

    0.30±0.08

    ≤4.00

    0.56±0.10

    100

    4.2~7.2

    φ9.0

    9.5±0.3

    0.30±0.08

    ≤4.50

    0.56±0.10

    100

    4.7~8.0

    φ10

    10.5±0.3

    0.30±0.08

    ≤5.00

    0.56±0.10

    100

    5.2~9.0

    φ11

    11.5±0.3

    0.30±0.08

    ≤5.50

    0.56±0.10

    100

    5.7~10

    φ12

    12.5±0.3

    0.30±0.08

    ≤6.00

    0.56±0.10

    100

    6.2~11

    φ13

    13.5±0.3

    0.35±0.10

    ≤6.50

    0.69±0.10

    100

    6.7~12

    φ14

    14.5±0.3

    0.35±0.10

    ≤7.00

    0.69±0.10

    100

    7.3~13

    φ15

    15.5±0.4

    0.35±0.10

    ≤7.50

    0.69±0.10

    100

    7.8~14

    φ16

    16.5±0.4

    0.35±0.10

    ≤8.00

    0.69±0.10

    100

    8.3~15

    φ17

    17.5±0.4

    0.35±0.10

    ≤8.50

    0.69±0.10

    100

    8.8~16

    φ18

    19.0±0.5

    0.35±0.10

    ≤9.00

    0.69±0.10

    100

    9.3~17

    φ20

    22.0±0.5

    0.40±0.12

    ≤10.0

    0.83±0.15

    100

    10.4~19

    φ22

    24.0±0.5

    0.40±0.12

    ≤11.0

    0.83±0.15

    100

    11.4~21

    φ25

    26.0±0.5

    0.45±0.15

    ≤12.5

    0.89±0.15

    50

    12.9~24

    φ28

    29.0±0.5

    0.45±0.15

    ≤14.0

    0.89±0.15

    50

    14.4~27

    φ30

    31.5±1.0

    0.50±0.15

    ≤15.0

    1.00±0.15

    50

    16~29

    φ35

    36.5±1.0

    0.50±0.15

    ≤17.5

    1.00±0.15

    50

    18~34

    φ40

    41.5±1.0

    0.55±0.15

    ≤20.0

    1.00±0.15

    50

    21~39

    φ45

    46.5±1.0

    0.55±0.15

    ≤22.5

    1.00±0.15

    25

    23.5~44

    φ50

    ≥50

    0.55±0.15

    ≤25.0

    1.10±0.15

    25

    26~49

    φ60

    ≥60

    0.60±0.15

    ≤30.0

    1.20±0.15

    25

    35~55

    φ70

    ≥70

    0.65±0.15

    ≤35.0

    1.30±0.20

    25

    40~65

    φ80

    ≥80

    0.65±0.15

    ≤40.0

    1.30±0.20

    25

    45~75

    φ90

    ≥90

    0.65±0.15

    ≤45.0

    1.30±0.20

    25

    50~85

    φ100

    ≥100

    0.65±0.20

    ≤50.0

    1.30±0.20

    25

    55~95

    φ120

    ≥120

    0.65±0.20

    ≤60.0

    1.30±0.20

    25

    65~115

    φ150

    ≥150

    0.65±0.20

    ≤70.0

    1.30±0.20

    25

    80~145

    φ180

    ≥180

    0.65±0.30

    ≤90.0

    1.30±0.30

    25

    95~175

    φ210

    ≥210

    0.65±0.30

    ≤105.0

    1.30±0.30

    25

    110~205

    φ230

    ≥230

    0.65±0.30

    ≤115.0

    1.30±0.30

    25

    120~225

    φ250

    ≥250

    0.65±0.30

    ≤125.0

    1.30±0.30

    25

    130~240

    Other sizes are available upon special order

    HHST-3X

    Size(mm)

    Before Shrinking
    ID(mm)

    After Shrink

    Packing
    (m)

     ID(mm)

    Thickness  min (mm)

    1.5/0.5

    1.6

    ≤0.5

    0.45

    200m/roll

    3.0/1.0

    3.2

    ≤1.0

    0.55

    200 m/roll

    4.5/1.5

    4.8

    ≤1.5

    0.60

    100 m/roll

    6.0/2.0

    6.4

    ≤2.0

    0.65

    100 m/roll

    9.0/3.0

    9.5

    ≤3.0

    0.75

    100 m/roll

    12.0/4.0

    12.7

    ≤4.0

    0.80

    50 m/roll

    18.0/6.0

    19.1

    ≤6.0

    0.90

    50 m/roll

    24.0/8.0

    25.4

    ≤8.0

    1.20

    50 m/roll

    39.0/13.0

    39.0

    ≤13.0

    1.25

    50 m/roll
