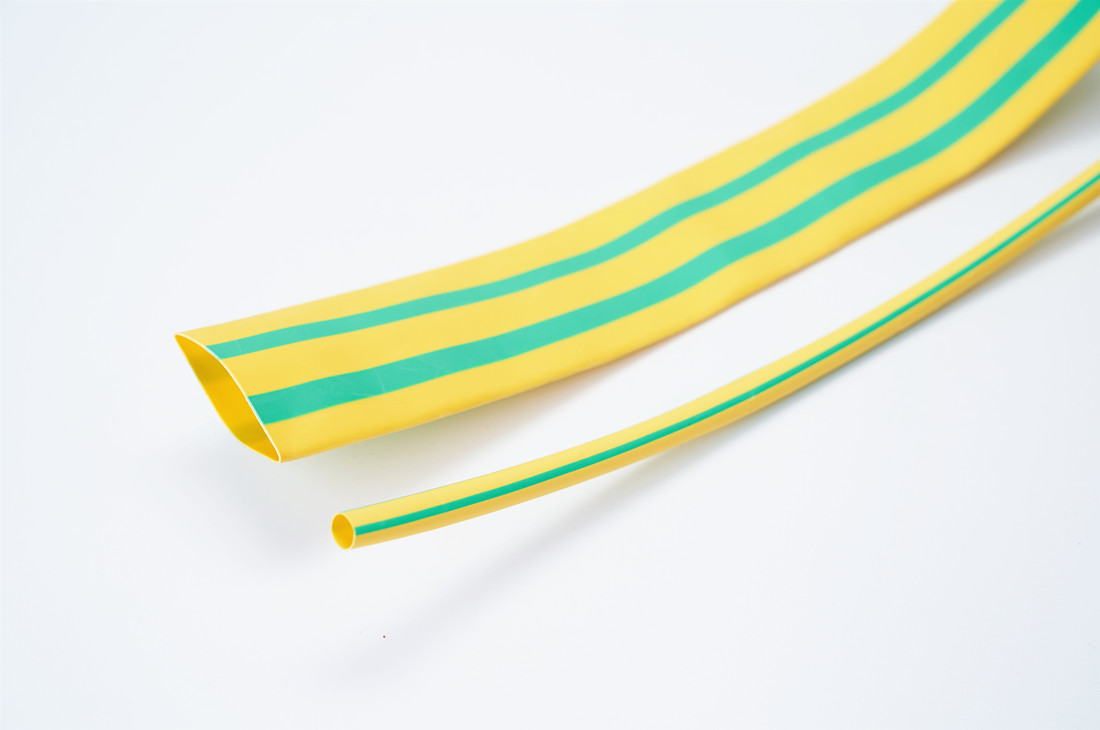

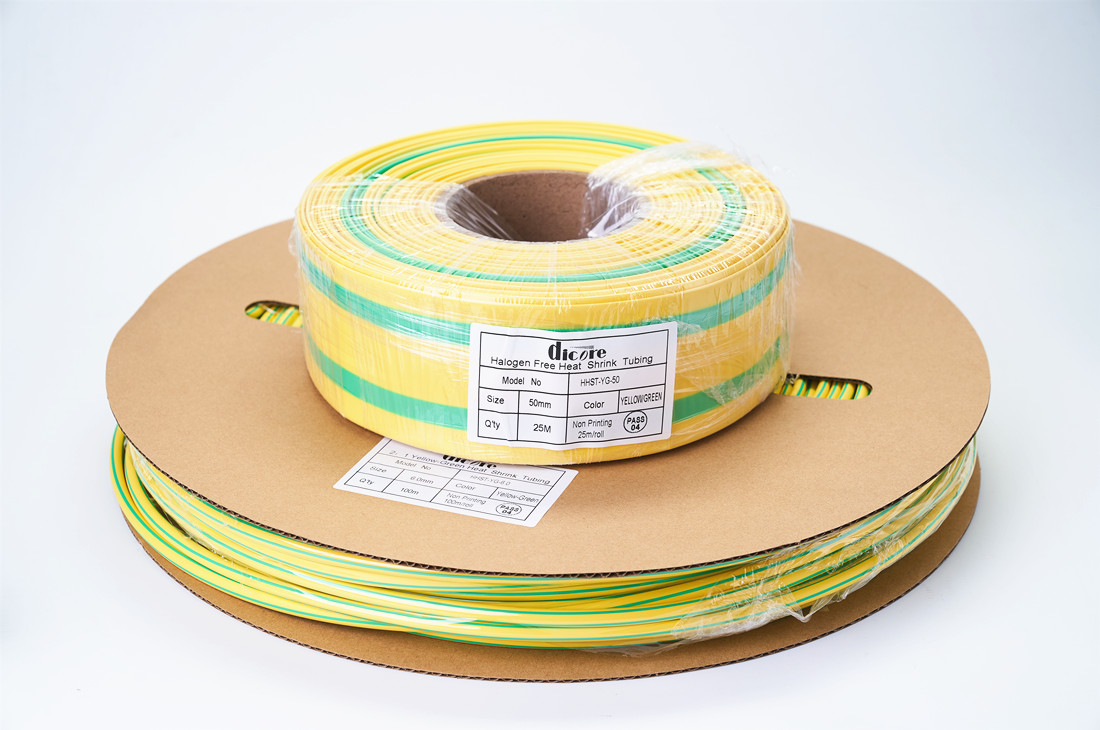

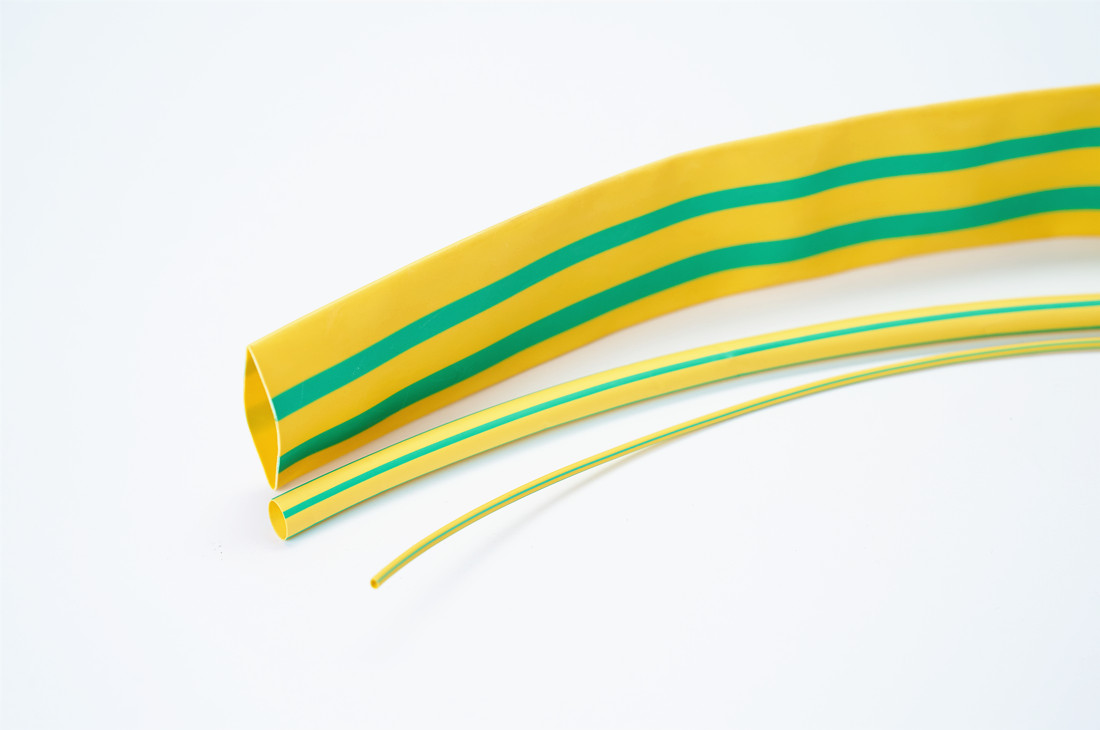

    Yellow Green Heat Shrink Tubing

    Moodel:HHST-YG

    Yellow/Green Heat Shrinkable tube is universally applied to wire or cable middle earth wire marks, special wire cable or conduit marks etc.

    Back to list >>

     >Operating Temperature:-55℃~125℃

    >Shrink Ratio:2:1,3:1

    >Shrink Temperature: Start at 70℃; shrunk totally at 120℃

    >Longitudinal Shrink ratio≤±8%

    >Soft, High flammability, Bright stable color

    >Convenient usage, heating shrink by oven or hot gun

    >RoHS compliant

    >Standard color: Yellow&Green striped


    Property

    Test Method

    Standard

    Tensile Strength(MPa)GB/T1040≥10.4
    Elongation(%)GB/T1040≥200
    Dielectric strength(kv/mm)GB/T1408≥15
    Volume Resistance(Ω.cm)GB/T1410≥1×1014
    Tensile Strength after AgingUL 224158℃×168hr≥7.3
    Elongation after AgingUL 224158℃×168hr≥100
    Heat shockUL 224250℃×4hrNo cracking
    FlammabilityUL224VW-1


    HHST-YG-2X

    Size (mm)

    As Supplied Size(mm)

    After Supplied Size(mm)

    Range(mm)Package

    I.D.

    W.T.

    I.D.

    W.T.

    (M/Roll)
    Φ1.01.5±0.30.15±0.08≤0.650.28±0.100.75~0.9

    200

    Φ1.52.0±0.30.18±0.08≤0.850.30±0.100.95~1.4

    200

    Φ2.02.5±0.30.18±0.08≤1.000.35±0.101.1~1.8

    200

    Φ2.53.0±0.30.18±0.08≤1.300.36±0.101.35~2.3

    200

    Φ3.03.5±0.40.18±0.08≤1.500.38±0.101.6~2.7

    200

    Φ3.54.0±0.40.22±0.08≤1.800.40±0.101.85~3.2

    200

    Φ4.04.5±0.40.25±0.08≤2.000.45±0.102.1~3.6

    200

    Φ4.55.0±0.40.25±0.08≤2.300.45±0.102.35~4.0

    100

    Φ5.05.5±0.40.25±0.08≤2.50.45±0.102.6~4.5

    100

    Φ6.06.5±0.40.28±0.08≤3.00.50±0.103.1~5.4

    100

    Φ7.07.5±0.40.28±0.08≤3.50.50±0.103.7~6.3

    100

    Φ8.08.5±0.50.28±0.08≤4.00.55±0.104.2~7.2

    100

    Φ9.09.5±0.50.30±0.10≤4.50.55±0.104.7~8.0

    100

    Φ1010.5±0.50.30±0.10≤5.00.55±0.105.2~9.0

    100

    Φ1111.5±0.50.30±0.10≤5.50.60±0.105.7~10

    100

    Φ1212.5±0.50.30±0.10≤6.00.60±0.106.2~11

    100

    Φ1313.5±0.50.35±0.12≤6.50.60±0.106.7~12

    100

    Φ1414.5±0.50.35±0.12≤7.00.65±0.107.3~13

    100

    Φ1515.5±0.60.40±0.12≤7.50.70±0.107.8~14

    100

    Φ1617.0±0.60.40±0.12≤8.00.70±0.108.3~15

    100

    Φ1819.0±0.70.40±0.15≤9.00.70±0.159.3~17

    100

    Φ2022.0±0.70.40±0.15≤10.00.75±0.1510.4~19

    100

    Φ2224.0±0.70.40±0.15≤11.00.80±0.1511.4~21

    100

    Φ2526.0±0.70.55±0.15≤12.50.90±0.1512.8~24

    50

    Φ2829.0±0.70.55±0.15≤14.00.90±0.1514.4~29

    50

    Φ3031.5±0.70.55±0.15≤15.00.95±0.1516~29

    50

    Φ3536.5±0.70.55±0.15≤17.50.95±0.1518~34

    50

    Φ4041.5±0.70.55±0.15≤20.01.00±0.2021~39

    50

    Φ5051.0±0.70.55±0.15≤25.01.00±0.2026~49

    25

    Φ60≥600.60±0.15≤30.01.10±0.2035~55

    25

    Φ70≥700.65±0.15≤35.01.20±0.2040~65

    25

    Φ80≥800.70±0.15≤40.01.30±0.2045~75

    25

    Φ90≥900.75±0.15≤45.01.50±0.2050~88.0

    25

    Φ100≥1000.80±0.20≤50.01.65±0.2055~95.0

    25

    Φ120≥1200.85±0.20≤60.01.70±0.2065~115.0

    15

    Φ150≥1500.90±0.20≤75.01.70±0.2080~145.0

    15

    Φ180≥1800.95±0.30≤90.01.75±0.2095~175.0

    15

     HHST-YG-3X

    Size

    As supplied Internal Diameter (min

    After Recovery(mm)

    Standard Package

    (m/roll)

    Inch

    Metric(mm)

    Internal diameter  (max)

    Wall thickness

    1/8

    3.2

    3.2

    1

    0.55±0.15

    200

    3/16

    4.8

    4.8

    1.5

    0.60±0.15

    100

    1/4

    6.4

    6.4

    2

    0.65±0.15

    100

    3/8

    9.5

    9.5

    3

    0.75±0.15

    50

    ½

    12.7

    12.7

    4

    0.75±0.20

    50

    ¾

    19.1

    19.1

    6

    0.85±0.20

    50

    1

    25.4

    25.4

    8

    1.00±0.20

    50

    1-1/2

    39

    39

    13

    1.50±0.20

    50
