Fiber Optic Fusion SpliceProtection Sleeves

First , what is Fiber Optic Fusion SpliceProtection Sleeves , and What is it used for ?

Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.

The advantage of our Fiber Optic Fusion SpliceProtection Sleeves over others





























Specification of our Fiber Optic Fusion SpliceProtection Sleeves

Features

>Working Temperature : -45 ~ 110 °C
>Shrinking temperature range: 120 °C
>Standard color: Clear
>Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple

optic fiber heat shrink tube thermal protector for termination box

Specifications

Single Fiber(mm)

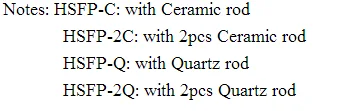

Notes: HSFP-H: High quality level(same as Tyco SMOUV)

Ribbon Fiber (mm)



Model

Splice Protection Sleeves (After Shrinkitng) Fusion Tubing Quartz or Ceramic Rod
Outer

Diameter

(±0.2)

Length

(±0.8)

Width

(±0.1)

Height

(±0.1)

Width

(±0.1)

Height

(±0.1)

HSFP-C-4core 3.4 42 1.3 2.2 3.0 1.5
HSFP-2C-4core 4.0 42 1.3 2.2 3.0 1.5
HSFP-C-6core 3.8 42 1.8 2.8 3.0 1.5
HSFP-2C-6core 4.5 42 1.8 2.8 3.0 1.5
HSFP-C-8core 4.8 42 2.4 3.4 4.0 2.0
HSFP-2C-8core 5.5 42 2.4 3.4 4.0 2.0
HSFP-C-12core 4.9 42 2.4 3.5 4.0 2.0
HSFP-2C-12core 5.8 42 2.4 3.5 4.0 2.0
HSFP-Q-4core 3.8 42 1.3 2.2 3.0 1.5
HSFP-2Q-4core 4.6 42 1.3 2.2 3.0 1.5
HSFP-Q-6core 3.8 42 1.8 2.8 3.0 1.5
HSFP-2Q-6core 4.5 42 1.8 2.8 3.0 1.5
HSFP-Q-8core 4.8 42 2.4 3.4 4.0 2.0
HSFP-2Q-8core 5.5 42 2.4 3.4 4.0 2.0
HSFP-Q-12core 4.9 42 2.4 3.5 4.0 2.0
HSFP-2Q-12core 5.8 42 2.4 3.5 4.0 2.0
Shipment
according to customers requirement , we will choose a best shipping mathod , include : DHL , UPS , EMS , Fedix and so on .
